RJ11 RJ12 6P6C 4-Way Buss Breakout Board
$23.95
SKU 467652

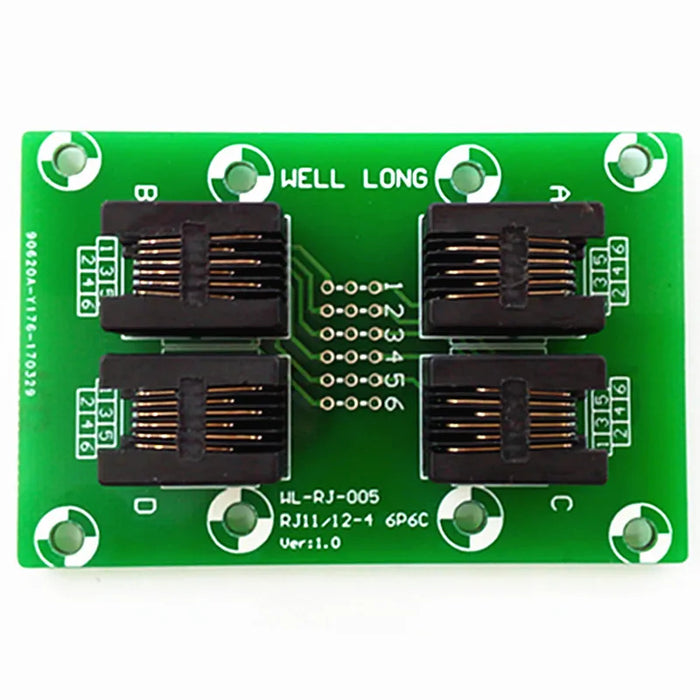

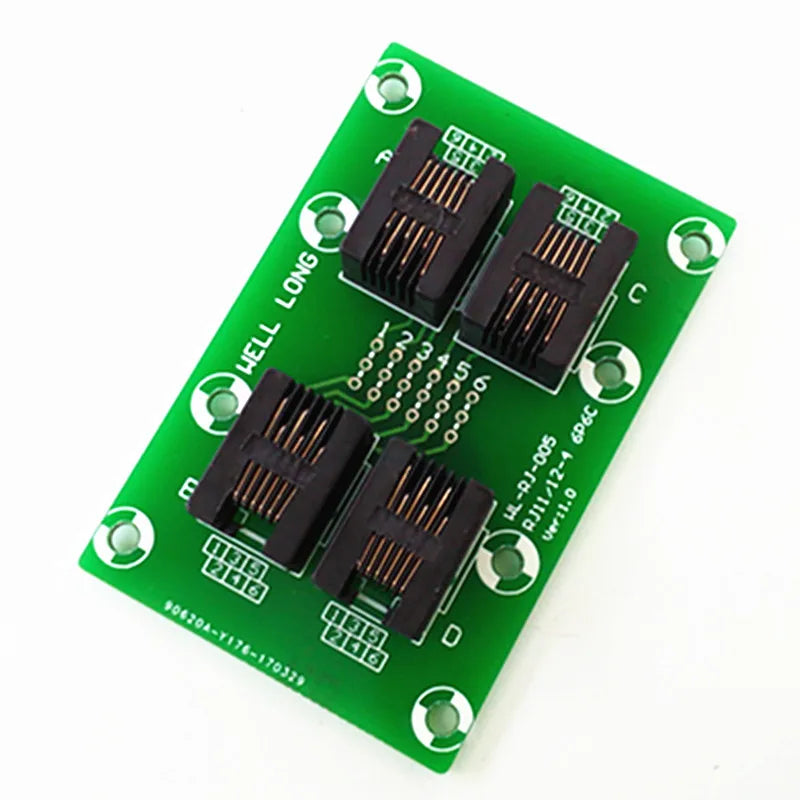

Now available from PMD Way are these neat RJ11 RJ12 6P6C 4-Way Buss Breakout Boards. Perfect for experimenting with devices connected by these common module cables.
Sockets are vertical so cables are perpendicular to the board.
Specifications:
- RJ11/12 6P6C Jacks.
- FR-4 fiber glass PCB, dual copper layers.

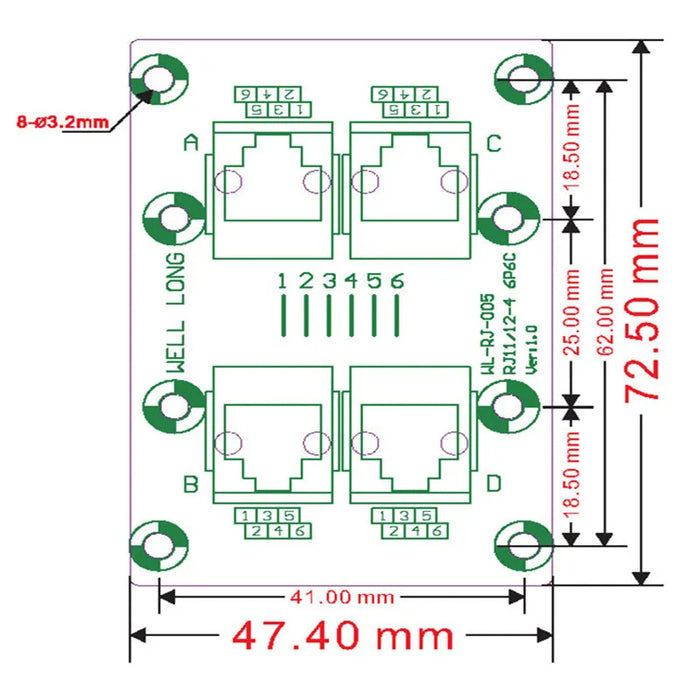

- PCB dimensions: 72.5 x 47.4mm (W x L).
- Rated voltage: 100V.
- Rated current: 500mA / per pin.
- Operating Temperature: -20ºC to 50ºC.
