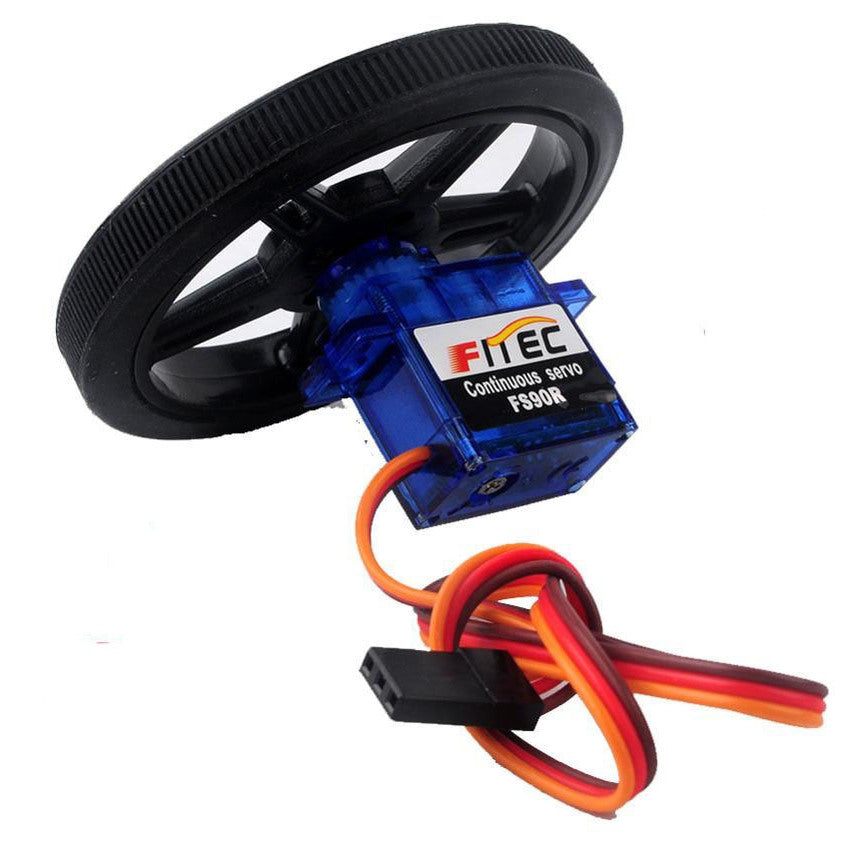

FS90R 360 Degree Continuous Rotation Servo and Wheel

Need to make a tiny robot car? This FS90R 360 Degree Continuous Rotation Servo from PMD Way rotates 360 degrees fully forward or backwards, instead of moving to a single position.

The servo can be controlled by any servo code you may be using. Servo includes variety of horns and hardware as shown below:

Specifications:

• No load speed: 110RPM (4.8v) / 130RPM (6v)
• Running Current (at no load): 100mA (4.8v) / 120mA (6v)
• Peak Stall Torque (4.8v): 1.3 kg/cm / 18.09 oz/in
• Peak Stall Torque (6v): 1.5 kg/cm / 20.86 oz/in
• Stall Current: 550mA (4.8v) / 650mA (6v)
• Dimensions: 32mm x 30mm x 12mm / 1.3" x 1.2" x 0.5"
• Wire Length: 240mm / 9.4"
• Weight: 10g

Dimensions of wheel:

Don't forget to check out our full range of robotics parts if this doesn't meet your needs. And as always, all orders receive free delivery.
