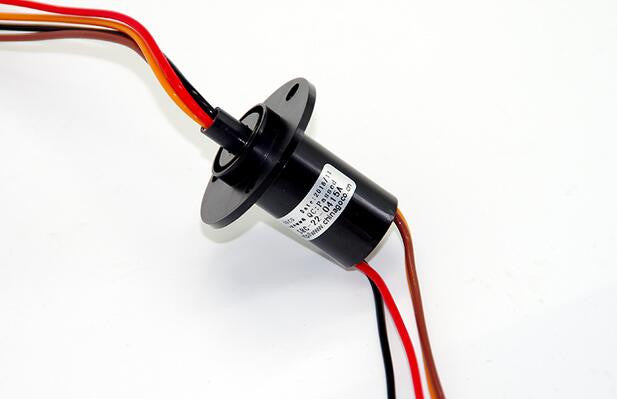

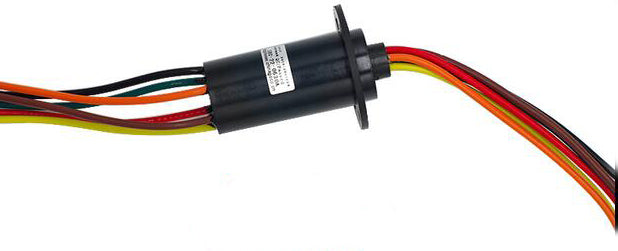

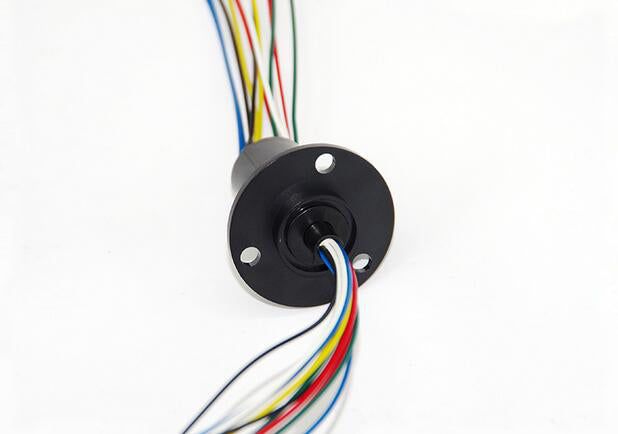

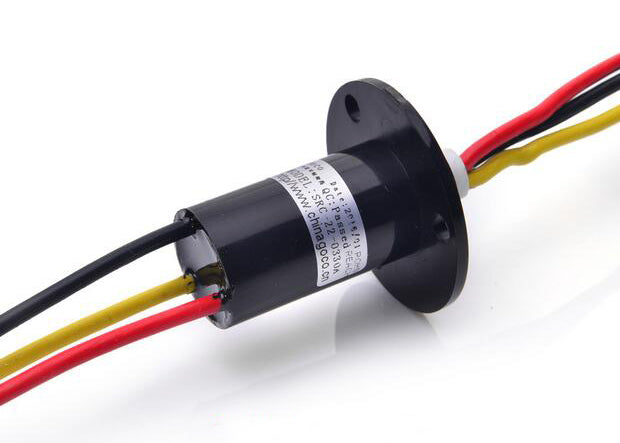

High Current Slip Rings - 2/3/4/5/6/8 Channels

Now available from PMD Way are these high current slip rings with free delivery. Slip rings are the solution to the problem of connecting wires to a device that needs to rotate continuously around 360 degrees.

These slip rings are available in a wide variety of wires (or channels) - 2, 3, 4, 5, 6 and 8 channels at various current-handling levels. Current ratings are per wire/channel - not total per slip ring.

These slip rings have gold contacts for quality connections and a long life.

We also offer slip rings with a lower, 2A current ability.

Specifications:

• Maximum voltage 380V AC/380V DC
• Maximum current - specified in drop-down list. Rating is per channel not per unit
• Wire - 12AWG Teflon coated
• Wire length 250mm
• Working temperature between -20 and 60 degrees Celsius
• Maximum rotating speed - 200 RPM
• MTBF - 5 million revolutions

Technical drawing - 2 channel, 5A

Technical drawing - 3/4/6 channel, 5A

Technical drawing - 8 channel, 5A

Technical drawing - 12 channel, 5A

Technical drawing - 2/3 channel, 10A

Technical drawing - 4 channel, 10A

Technical drawing 5/6/8 channel, 10A

Technical drawing 2 channel, 15A

Technical drawing 3 channel, 15A

Technical drawing 4 channel, 15A

Technical drawing 2 channel, 30A

Technical drawing 3 channel, 30A

Technical drawing 4/5/6 channel, 30A

Don't forget to check out our full range of slip rings if this doesn't meet your needs. And as always, all orders receive free delivery.
