Hollow Slip Rings

$32.95
SKU 760332A

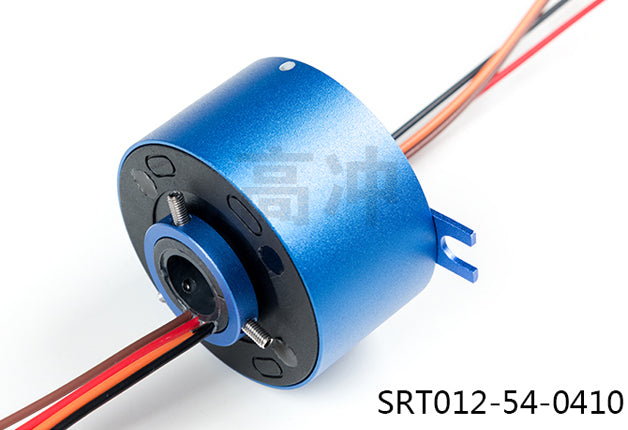

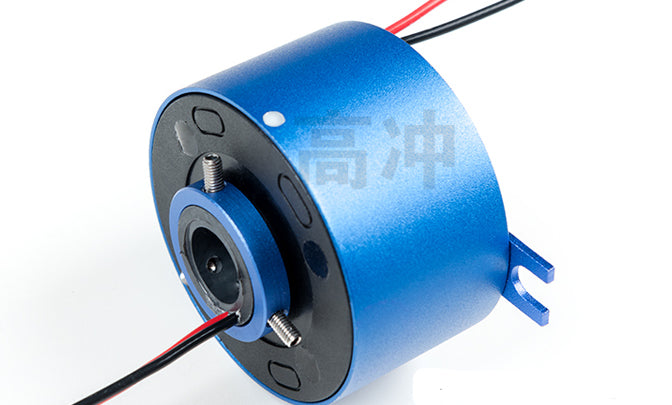

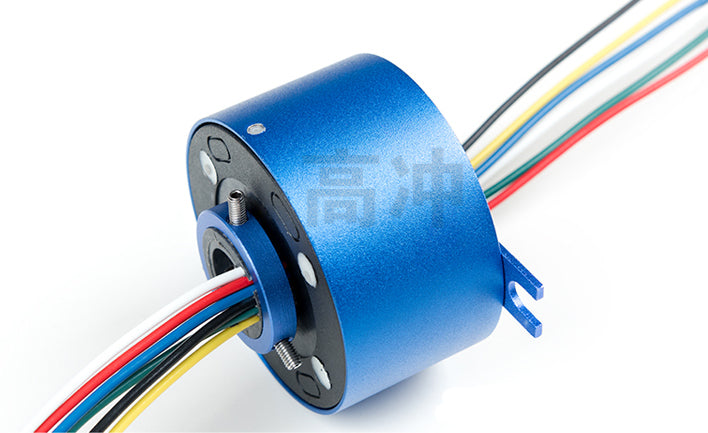

Now available from PMD Way are these hollow slip rings. Slip rings are the solution to the problem of connecting wires to a device that needs to rotate continuously around 360 degrees, and these units have a hollow centre to allow a rod or bar to pass through.

Select your required type from the list.

Types are listed as inside diameter (mm) x outside diameter x number of channels by total unit current.

For example, the 5x22mm 6CH 2A unit has a 5mm internal hole diameter, six channels and a total current of 2A for the unit. This equates to 2A/6 per channel, which is 0.33A per channel. Free delivery, worldwide.

Specifications:

  • Maximum rotating speed - 300 RPM
  • Maximum voltage 220V AC/220V DC
  • Maximum current determined by selected slip ring type from list
  • Current is per unit not per channel.
  • Wire type 17AWG with Teflon coating
  • Wire length - 250mm
  • MTBF 5 million revolutions

Technical Drawings:
