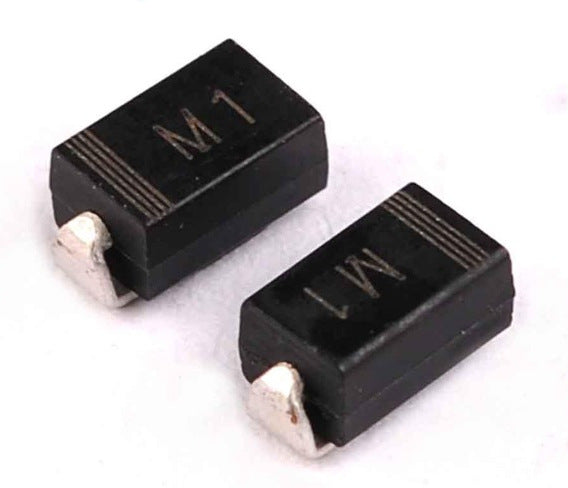

1N4001 50V 1A SMD Power Diode - 100 Pack

$6.95
SKU 3569443

1N4001 SMD power diodes in packs of 100 from PMD Way. Package type is DO214.

Specifications:

  • Voltage - DC Reverse (Vr) (Max) 50V
  • Current - Average Rectified (Io) 1A
  • Voltage - Forward (Vf) (Max) @ If 1.1V @ 1A
  • Speed Standard Recovery >500ns, > 200mA (Io)
  • Reverse Recovery Time (trr) 3µs
  • Current - Reverse Leakage @ Vr 5µA @ 50V
  • Capacitance @ Vr, F 10pF @ 4V, 1MHz
  • Mounting Type Surface Mount
  • Operating Temperature - Junction -65°C ~ 150°C
