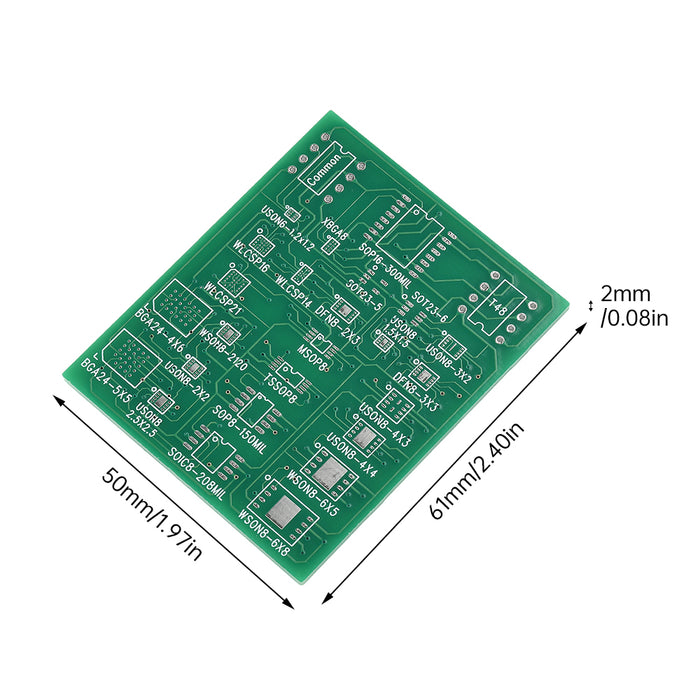

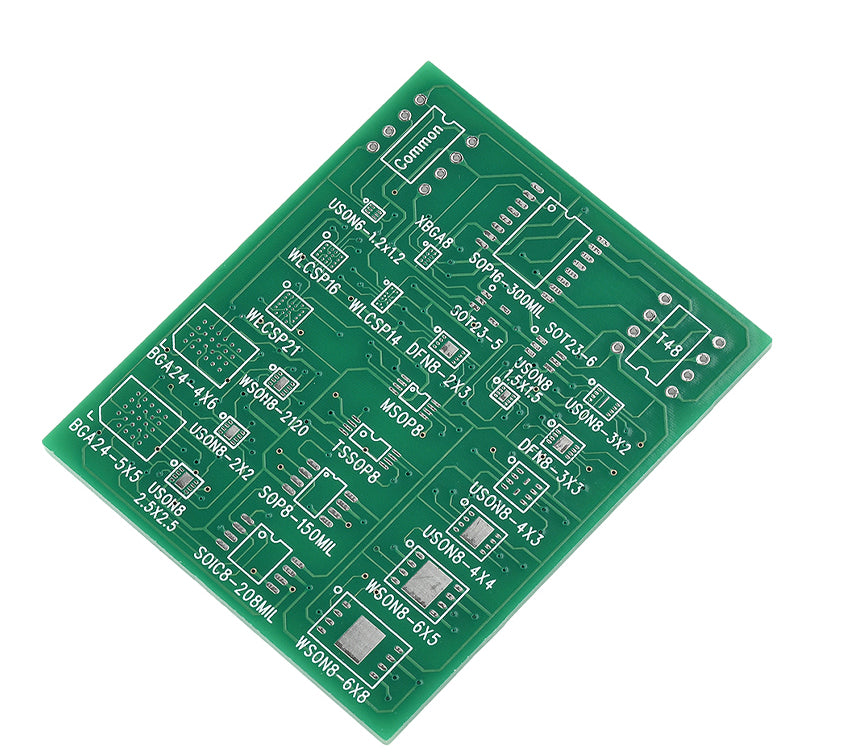

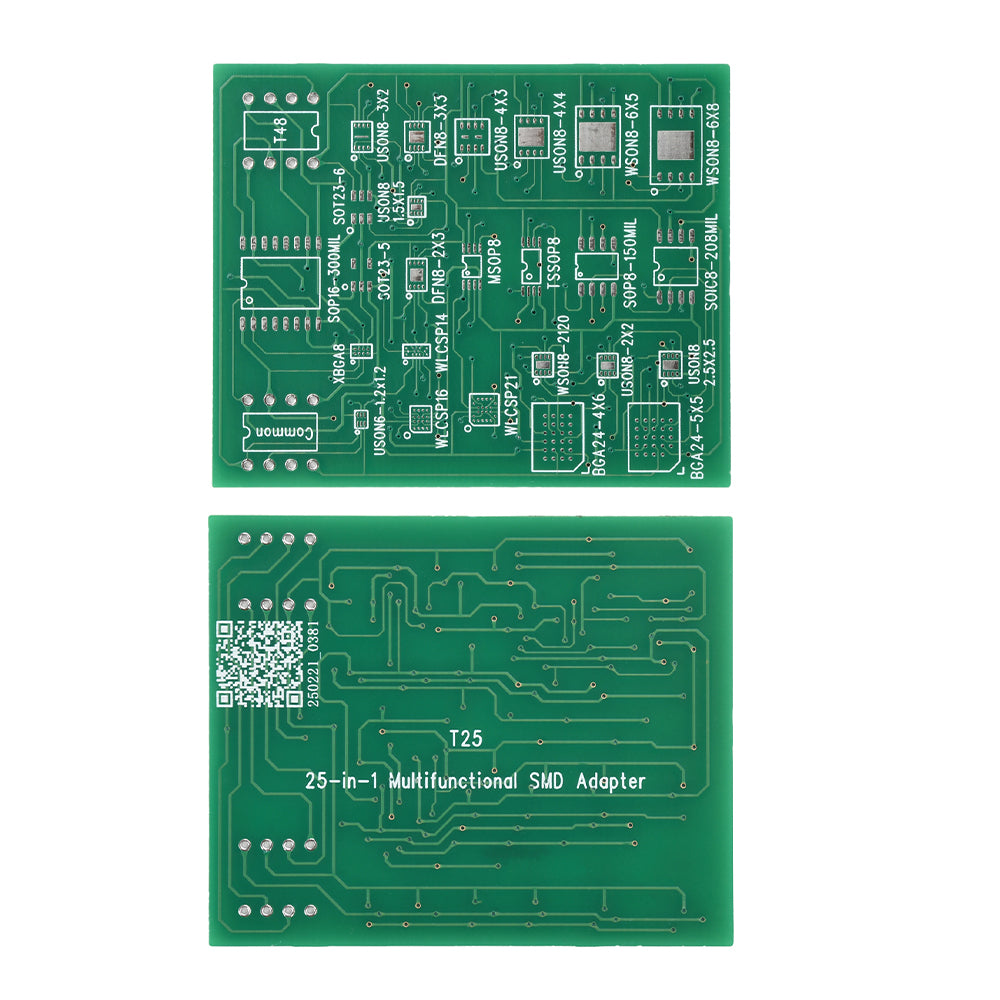

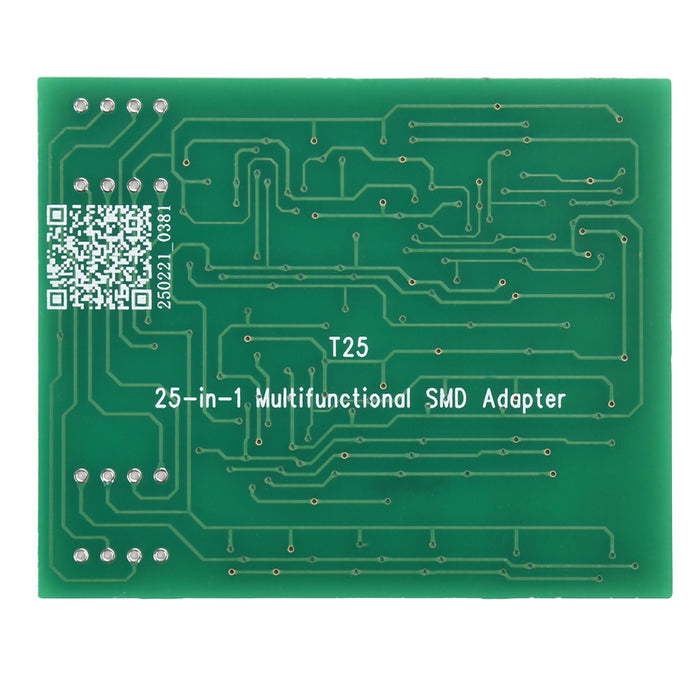

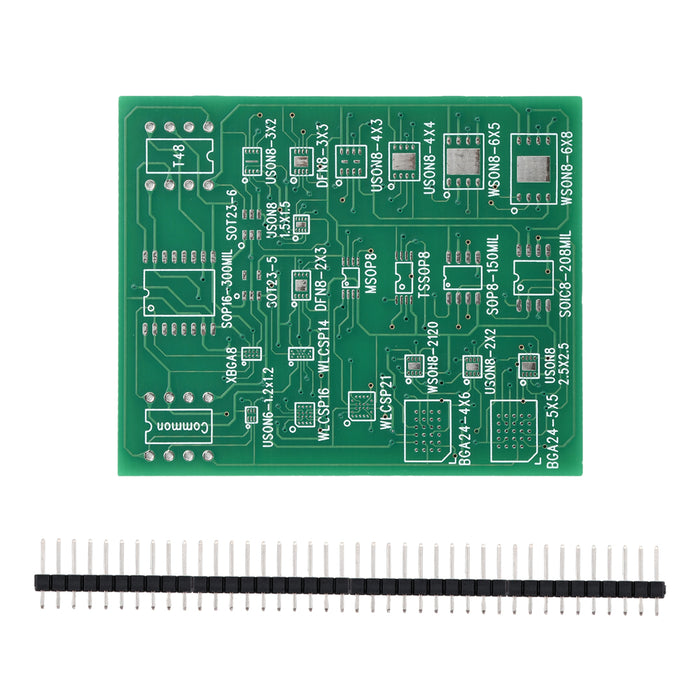

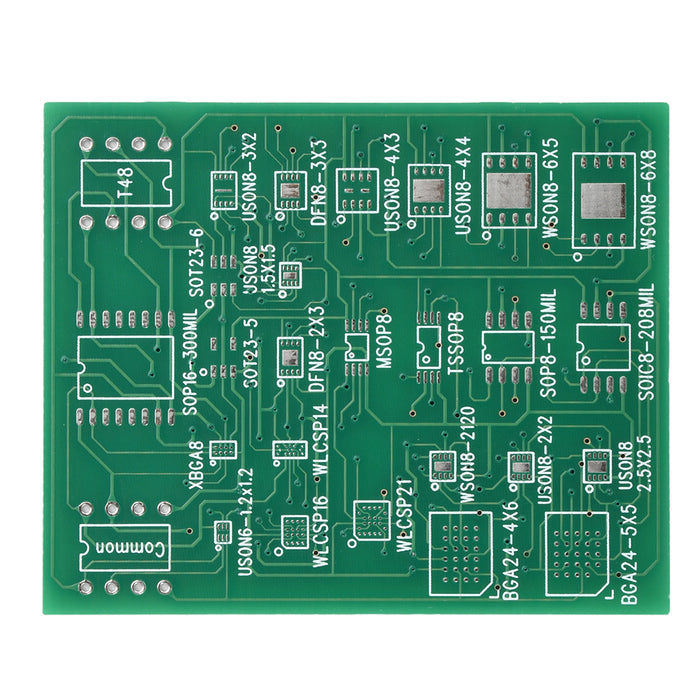

25 in One Multi SMT SMD Breakout Board
Easily connect one of twenty-five different types of SMD IC to DIP 8 socket pinouts with this very useful 25 in One Multi SMT SMD Breakout Board from PMD Way.
The types of IC supported are as follows:
1: SOC8-150MIL (mark 5*4)
2: SOP8-200MIL (mark 5.3*5.3)
3: DFN8-8*6
4: DFN6-1.2*1.2
5: USON8-1.5*1.5
6: DFN8-2*2
7: DFN8-3*2
8: USON8-3*2
9: SOT6-23-6
10: SOT5-23-5
11: USON8-4*3
12: WSON8-6*5
13: WSON8-3*3
14: WLCSP-16
15: WLCSP-12
16: WLCSP-21
17: WLCSP12--3119
18: WLCSP12--2320
19: WLCSP8-2216
20: TSSOP8
21: MSOP8
22: XSON8-4
23: BGA24-5*5
24: BGA24-4*6
25: SOIC16 300MIL
Note: This board is designed for SPI NOR Flash and may not be suitable for SPI NAND.
Click image to enlarge:
Don't forget to check out our full range of SMT breakouts if this doesn't meet your needs. And as always, all orders receive free delivery.
