6V 12V 10A Solar Charge Controller

Easily harness solar energy and convert it into useful output with this 6V 12V 10A Solar Charge Controller from PMD Way.

You can charge 6V or 12V batteries, and draw matching power with ease. Simply make the connections as shown below, be sure to match polarity to avoid problems.

LEDs on indicator panel show status of solar input, charging and use of load.

Specifications:

• System Voltage: 6V, 12V
• Output Current: up to 10A
• Power Range: ≤60W (6V), ≤120W (12V)
• Includes overload and short circuit protection
• No-load loss: ≤5mA
• Charge Loop Drop: ≤0.2V
• Disharge Loop Drop: ≤0.1V
• Protection Degree: IP30
• Working Temperature: -40°~55 °C

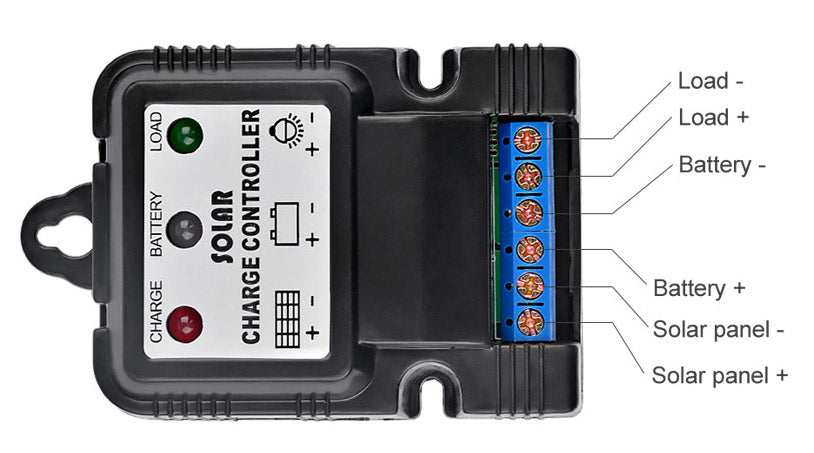

Connection guide:

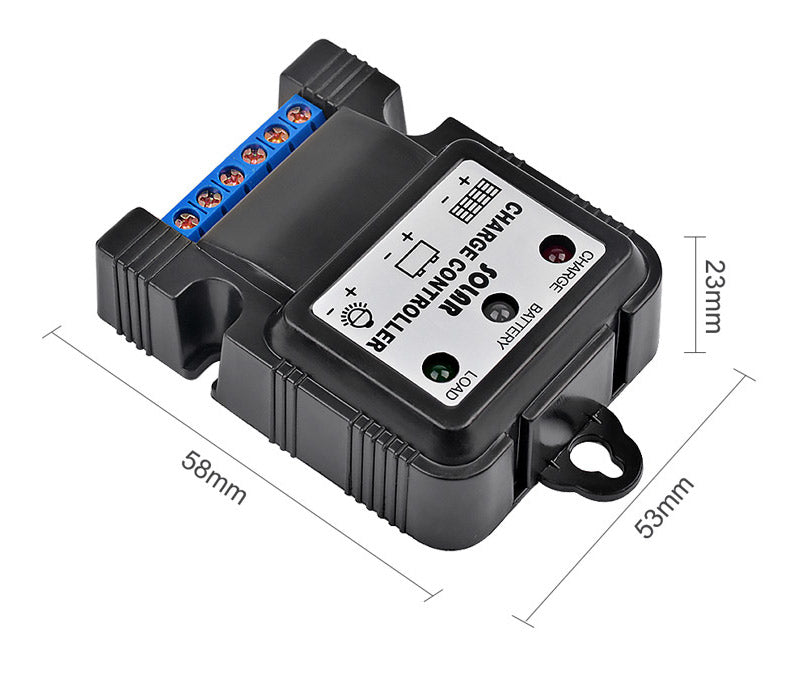

Dimensions:

Don't forget to check out our full range of DC-DC converters if this doesn't meet your needs. And as always, all orders receive free delivery.
