Twin LED Tactile Buttons - Ten Pack

$22.95
SKU 41938874

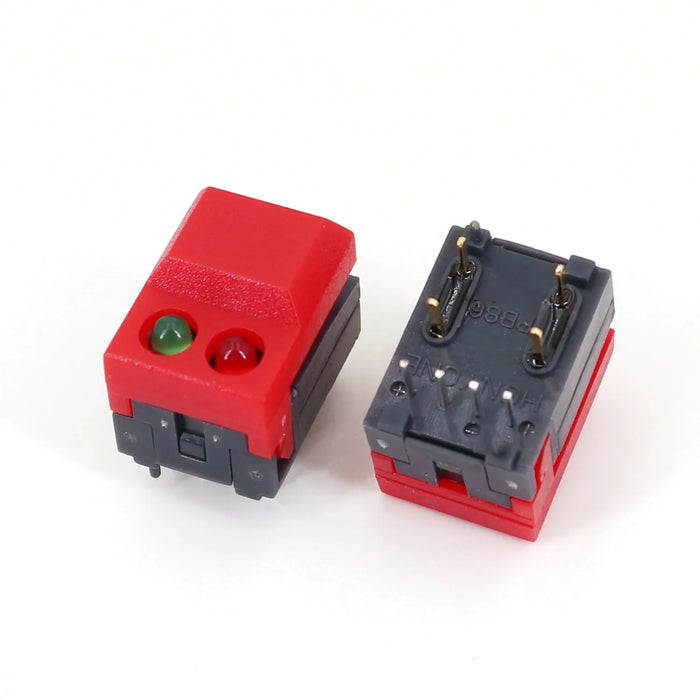

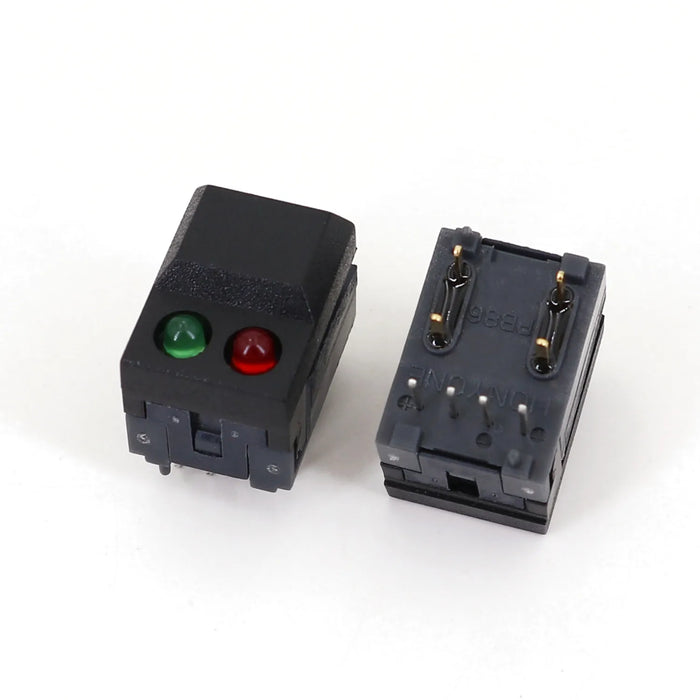

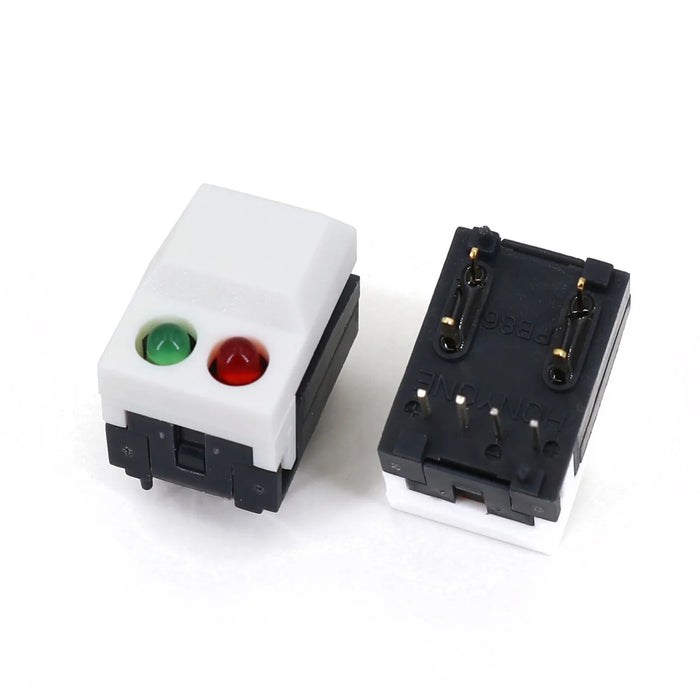

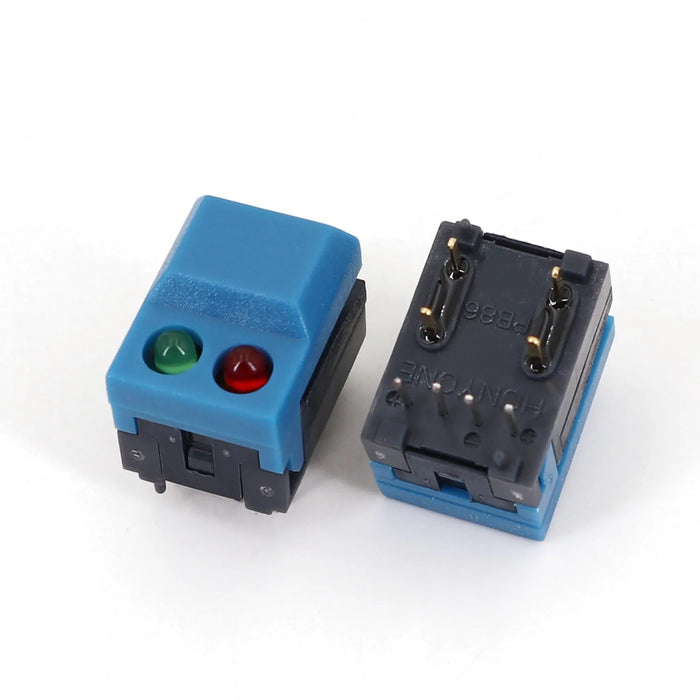

Now available from PMD Way are these interesting twin LED tactile buttons. Ideal for more complex control panels, model railways, or other situations where status needs to be displayed in a compact and neat manner.

Each button is momentary, and contains one red and one green LED. The LEDs are electrically isolated from the switch mechanism. You can select the button body color using the options menu.

Specifications:

  • Button Current Rating: 12mA
  • Button Voltage Rating: 24VDC
  • LED Working Voltage: 1.8~2.4V (maximum 20mA)
  • Contact Resistance: 100 milliohm
  • Insulation Resistance: 100 Mega ohm
  • Operating Force: 170±50gf
  • Travel: 2.0mm±0.4mm

Drawings:

Twin LED Tactile Buttons in packs of ten from PMD Way with free delivery worldwide

Twin LED Tactile Buttons in packs of ten from PMD Way with free delivery worldwide

Don't forget to check out our full range of buttons if this doesn't meet your needs. And as always, all orders receive free delivery.
