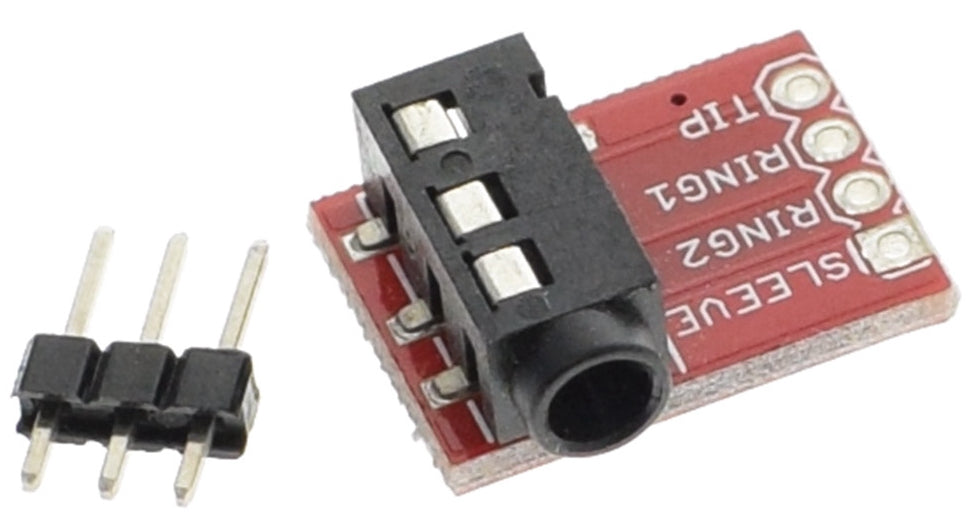

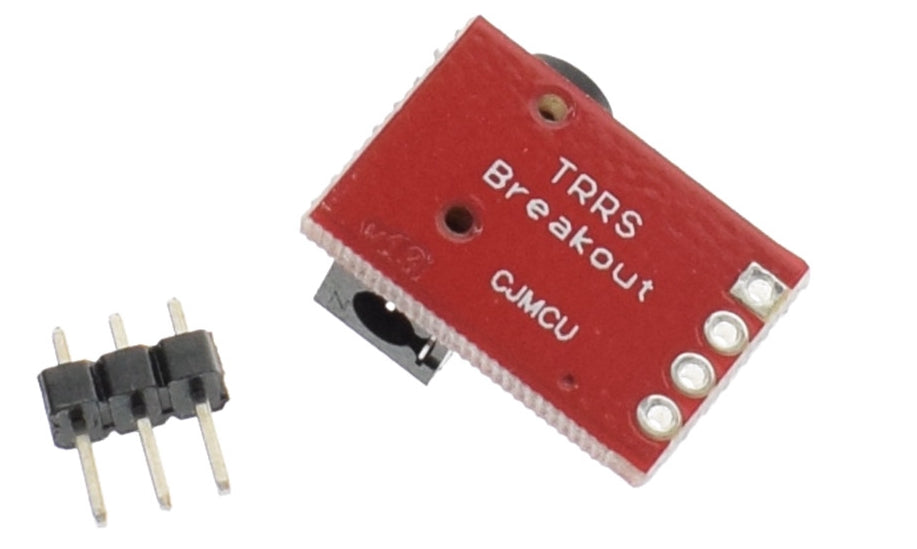

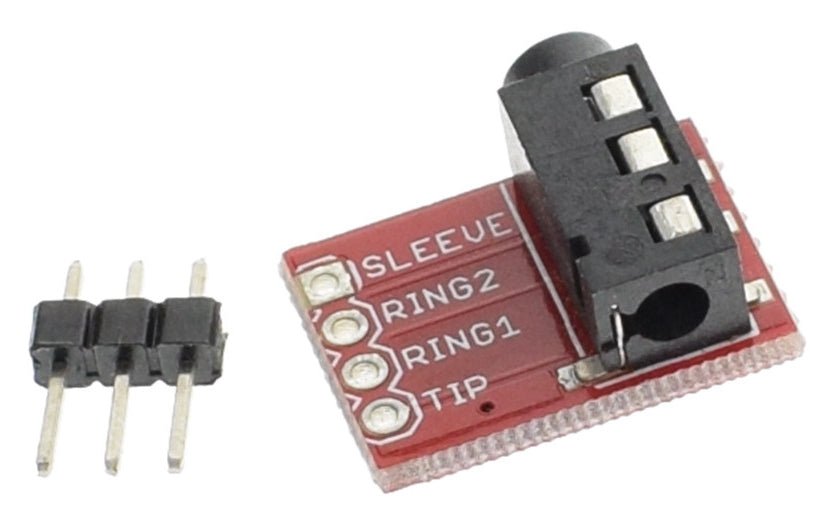

TRRS Socket Breakout Board
Now available PMD Way is this useful TRRS Socket Breakout Board from PMD Way.
TRRS connectors are the audio-style connectors that you see on some phones, MP3 players and development boards. TRRS stands for “Tip, Ring, Ring, Sleeve,” which reflects the fact that, unlike a standard stereo connector, this actually has three conductors and a ground.
Some devices use the extra conductor for a microphone (like hands-free headsets) or to carry a video signal (like in some MP3/MP4 players).
This breakout board makes it easy to add a TRRS jack to your prototype or project by breaking out each conductor to a standard 0.1" spaced header. Inline header pins are included but not soldered to the board.
Click here for packs of ten boards.
