USB 3.1 Type C Female to Male Breakout Test Board
Easily tap into USB C 3.1 cables with this useful male to female breakout board from PMD Way. No more cutting up USB C cables - simply use this board to tap into the signals you need to investigate.

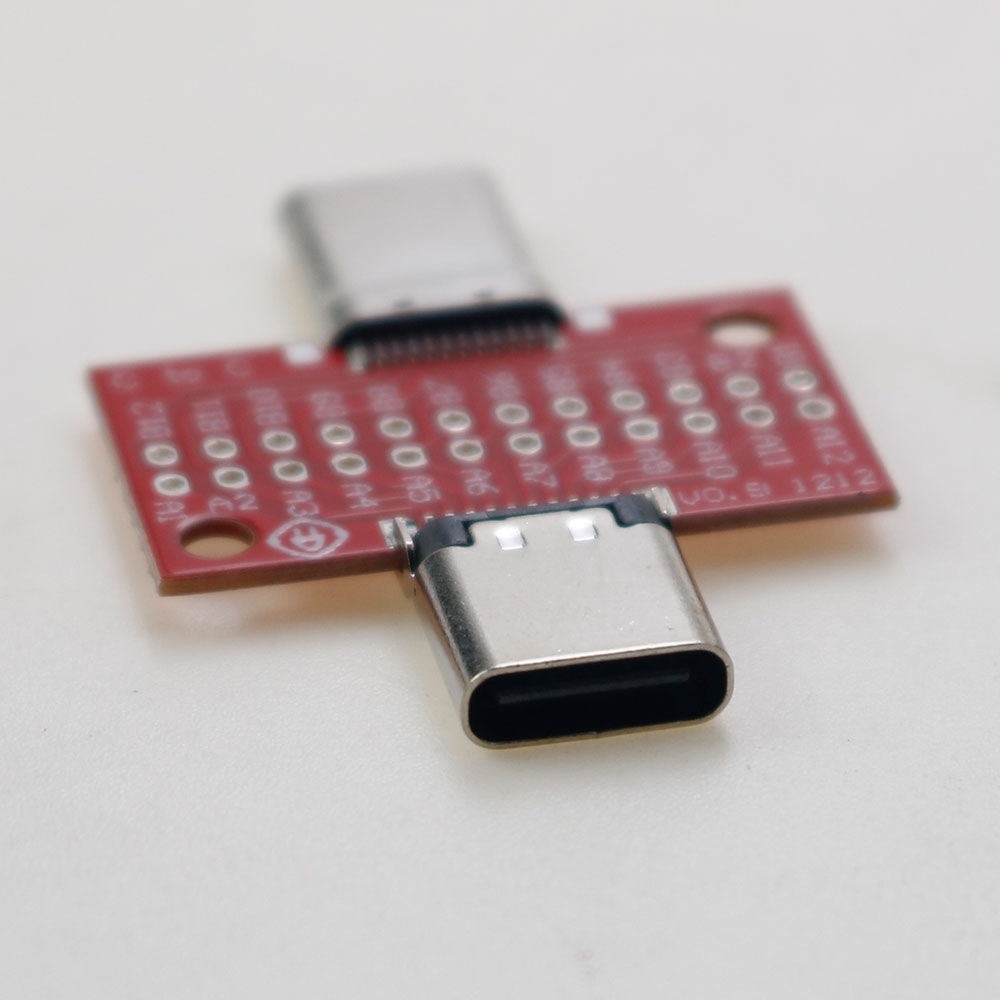

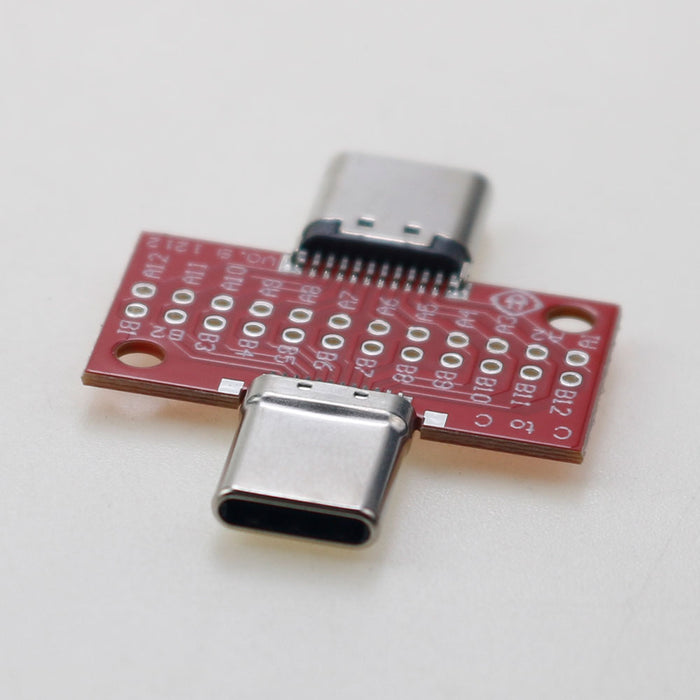

The board has a male connector on one side, and a female connector on the other - allowing easy through connection with USB C cables. You can then access each conduit through the PCB pads between the sockets.
Pins are labelled for easy reference. Please note that the PCB may vary slightly in color.

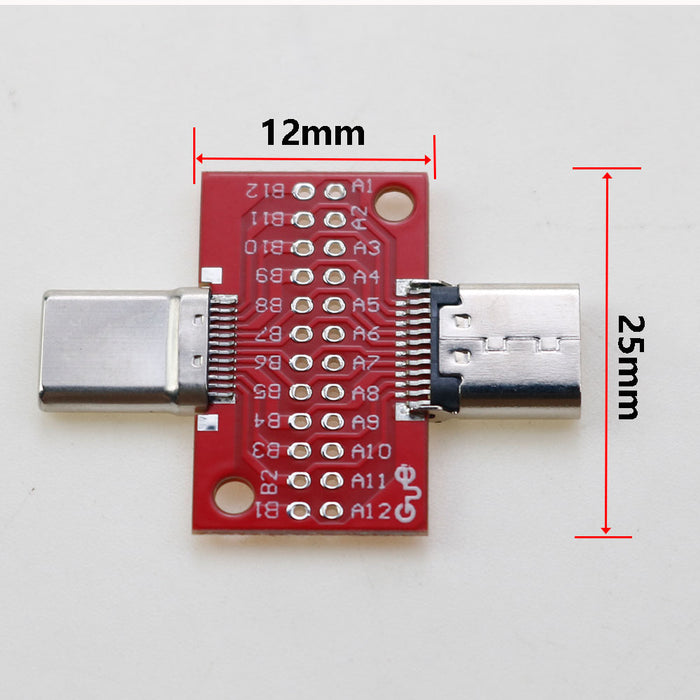

Dimensions:

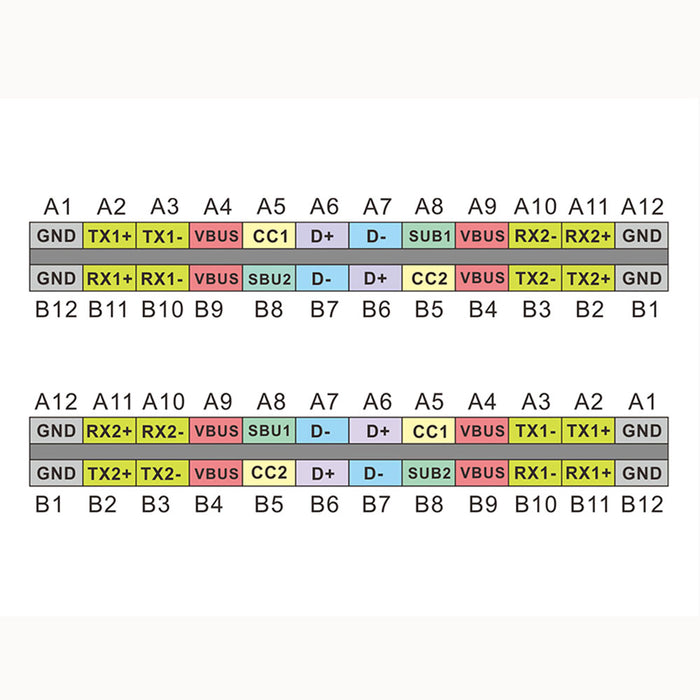

Pinouts:
Don't forget to check out our full range of USB breakout boards if this doesn't meet your needs. And as always, all orders receive free delivery.
