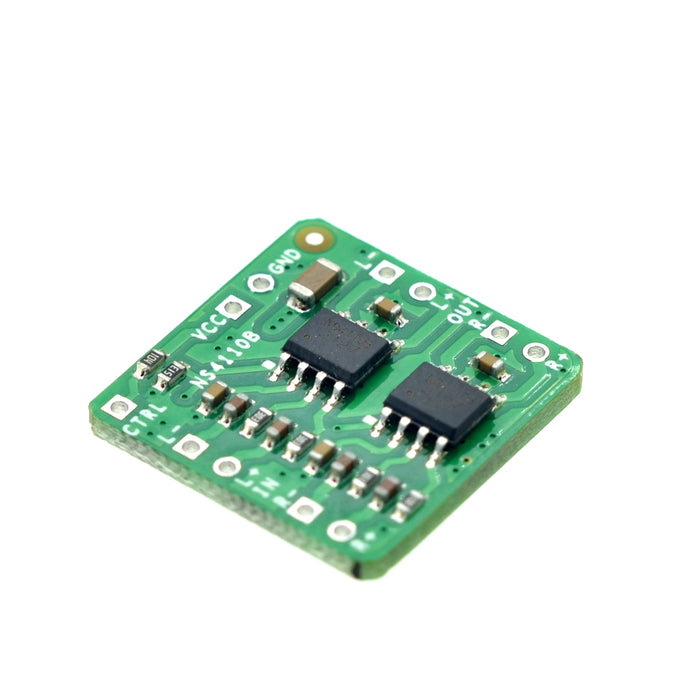

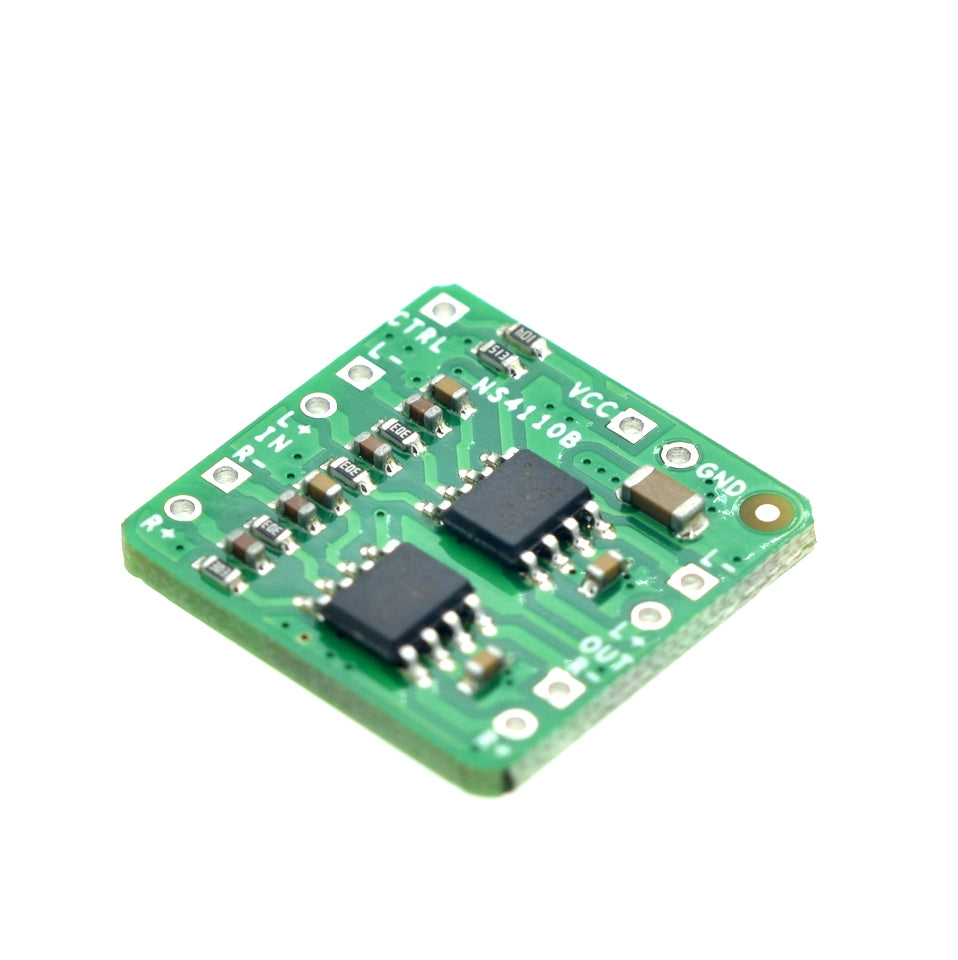

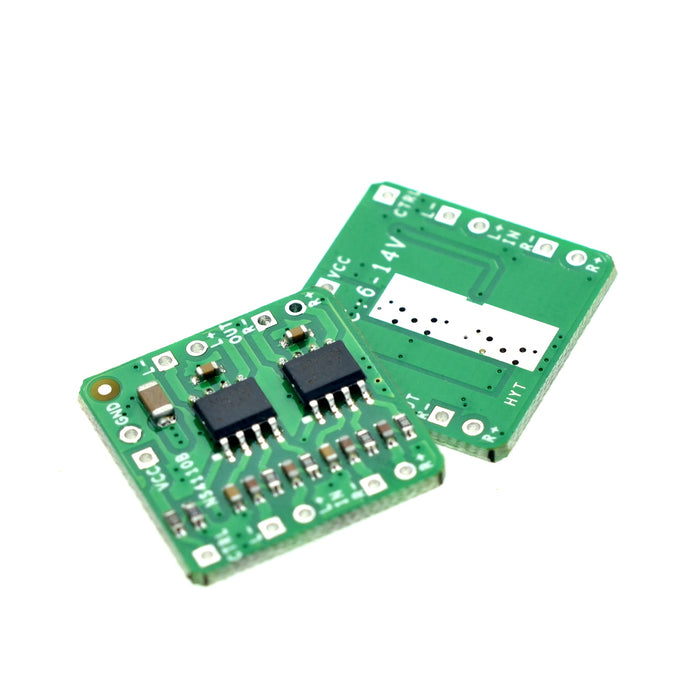

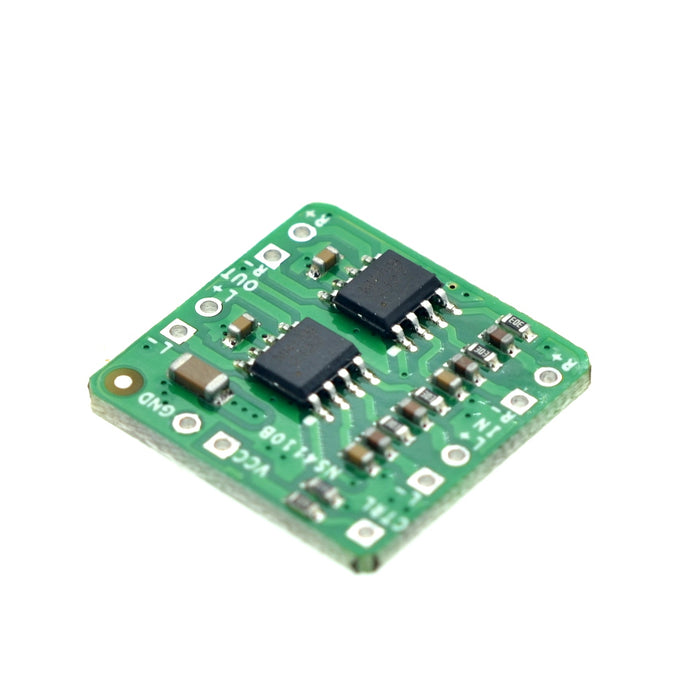

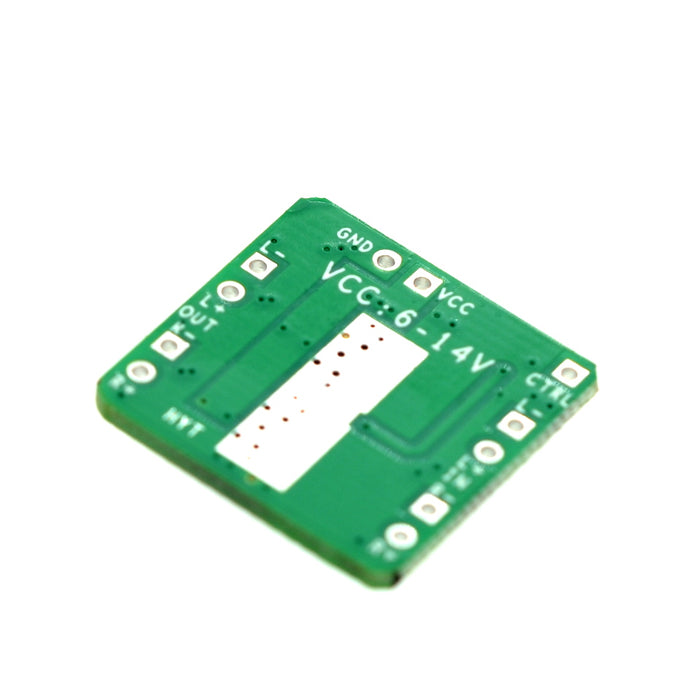

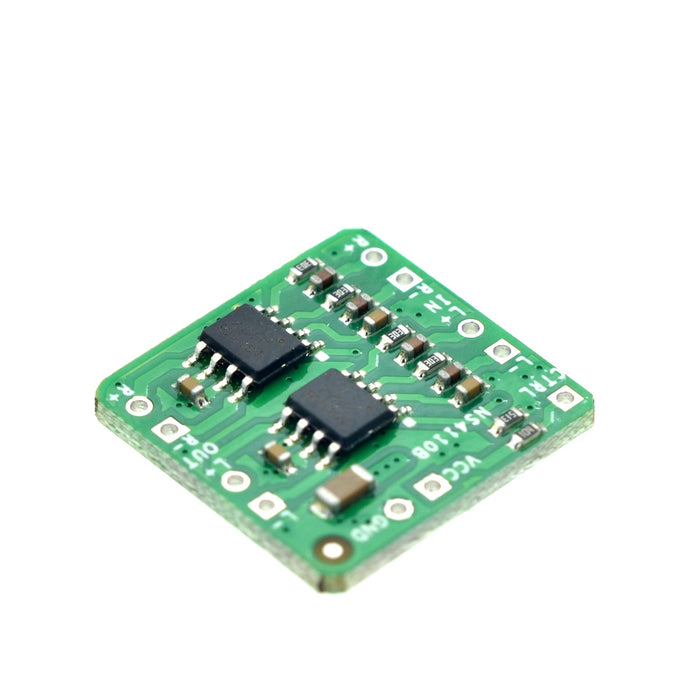

18 x 2 W Digital Class D/Class AB Differential Amplifier Board

Now available from PMD Way is this high-performance dual-channel amplifier module. Based on the NS4110B, the amplifier board is a 2 x 18W digital Class D/Class AB audio power amplifier board which delivers a strong output for high-quality sound in compact setups.

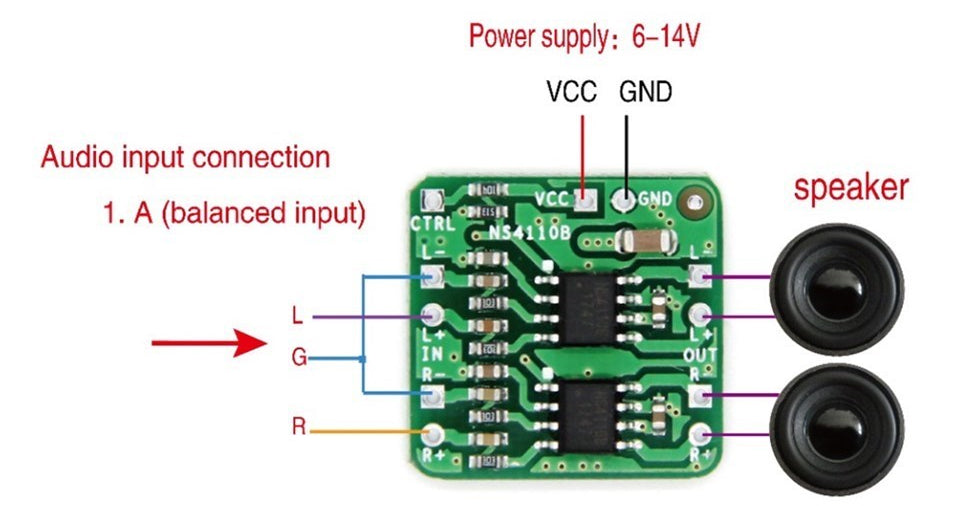

• Designed to operate within a 6-14V voltage range, this amplifier ensures stable performance across various power sources and applications.
• Efficient Class D/Class AB hybrid design Combining the efficiency of Class D with the clarity of Class AB, this module delivers powerful audio with minimal heat and energy loss.
• Compact and lightweight module Measuring 10 x 10 x 10 cm and weighing only 0.030 kg, this amplifier is ideal for space-constrained installations and portable audio systems.


Output power varies depending on configuration:

Working Voltage: 6 ~14 V DC
Output Power: 7 W/10 W/18 W:

• 7 W (Class D , 7.4V supply 4 Ohm, THD=10%
• 10 W (Class D, 9 V 4 Ohm, THD=10%
• 18 W (Class D, 12 V 4 Ohm, THD=10%

Don't forget to check out our full range of amplifier breakout boards if this doesn't meet your needs. And as always, all orders receive free delivery.
