DC USB C Multi Voltage Breakout Board

If you're experimenting and prototyping various circuits and projects - you will need all sorts of various power rails. To solve this problem, PMD Way now has this very useful multi-voltage breakout board with free delivery.

Use the options menu to select your pack size to save money, from 1 to 5 or ten units.

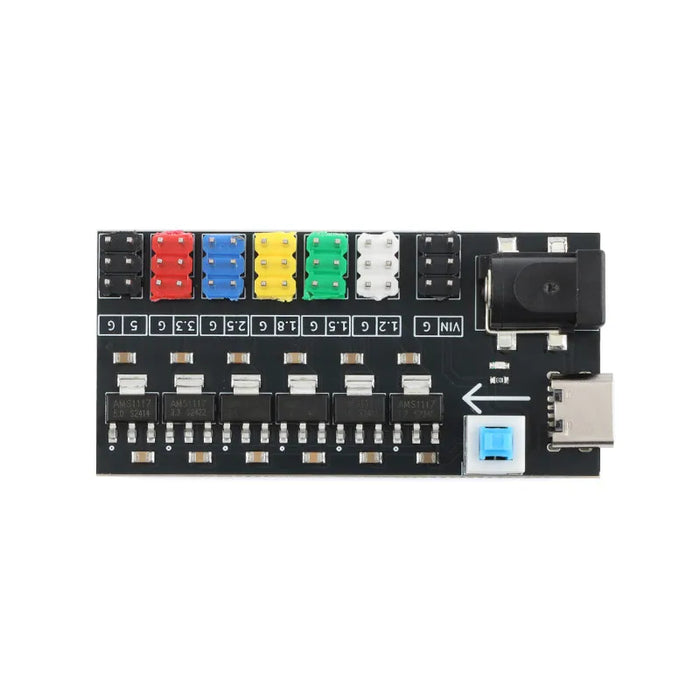

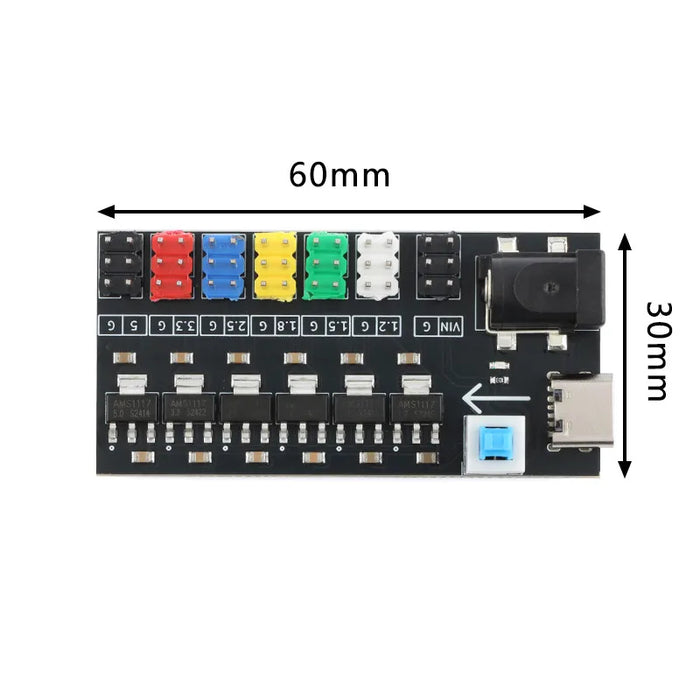

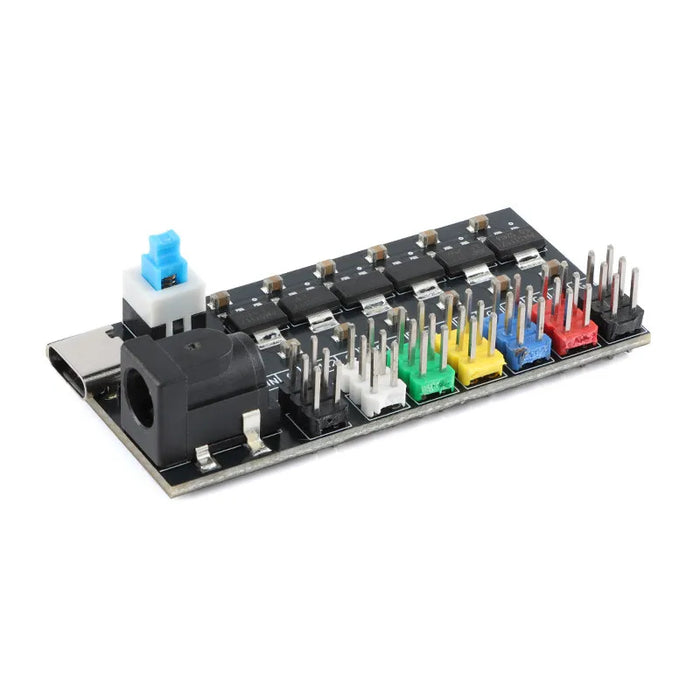

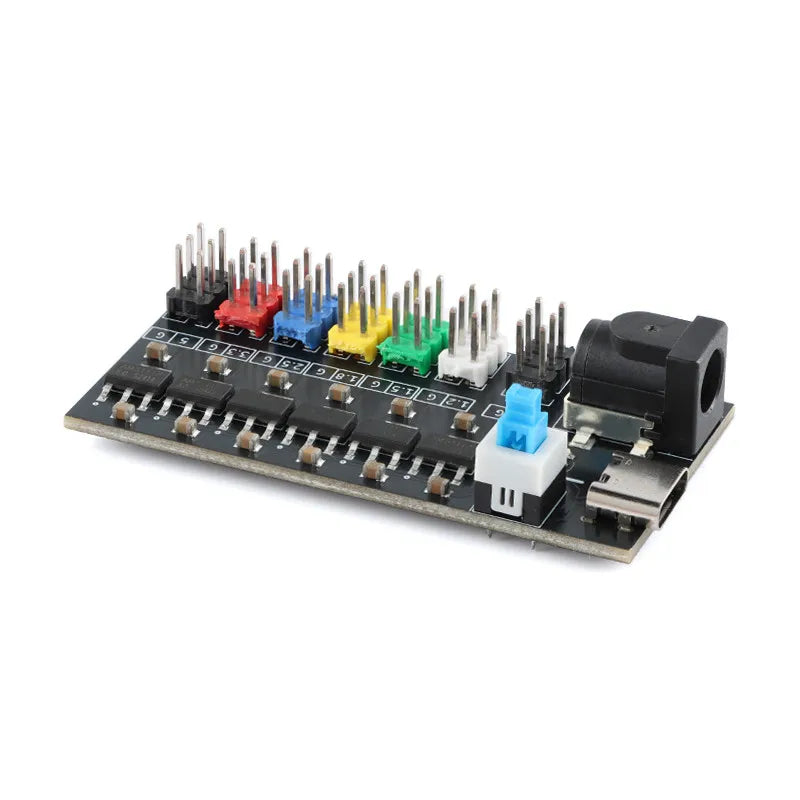

The board has a 5 V USV C input, inline pin and a DC socket input. And for the best part, there are six DC voltage outputs: 1.2V, 1.5V, 1.8V, 2.5V, 3.3V, and 5.0V - each up to 800 mA.

Each voltage output is accessed via six pins in a 2x3 configuration:

Note that the input power is available from the two input methods you aren't using. E.g. if you feed in 12 V using the DC socket, that 12 V is apparent at the USB socket and the DC input pins.

If you need an AC to DC converter to power your board, click here.

Don't forget to check out our full range of DC-DC converters if this doesn't meet your needs. And as always, all orders receive free delivery.
