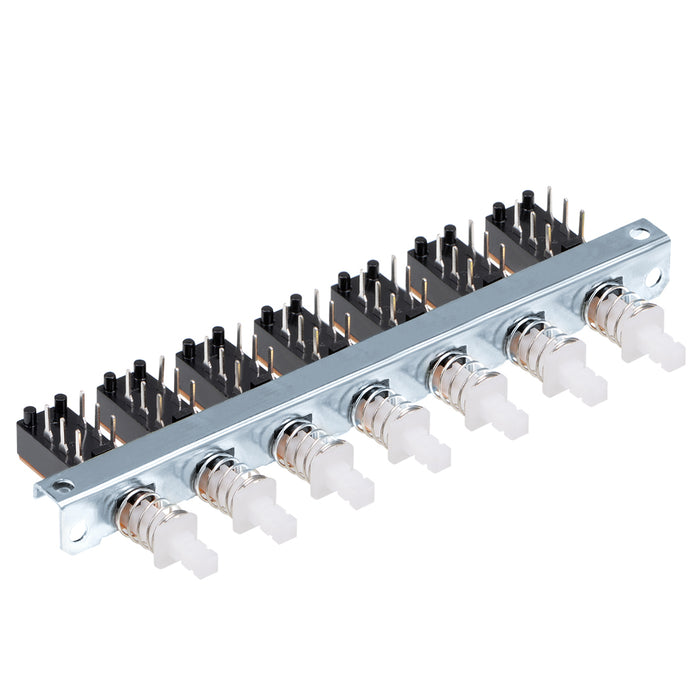

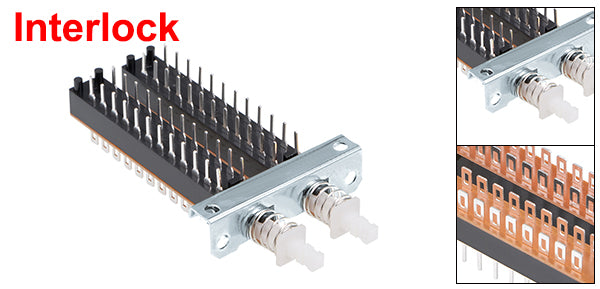

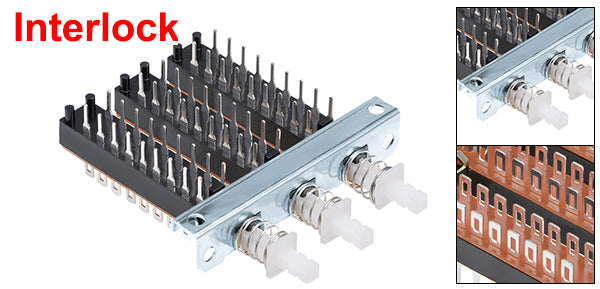

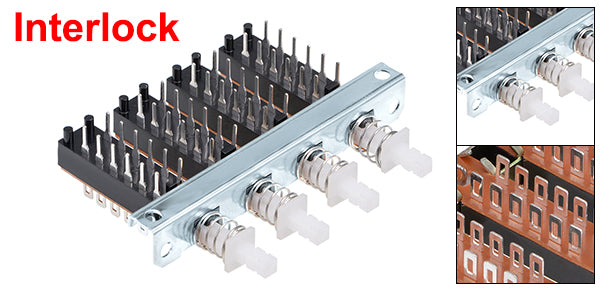

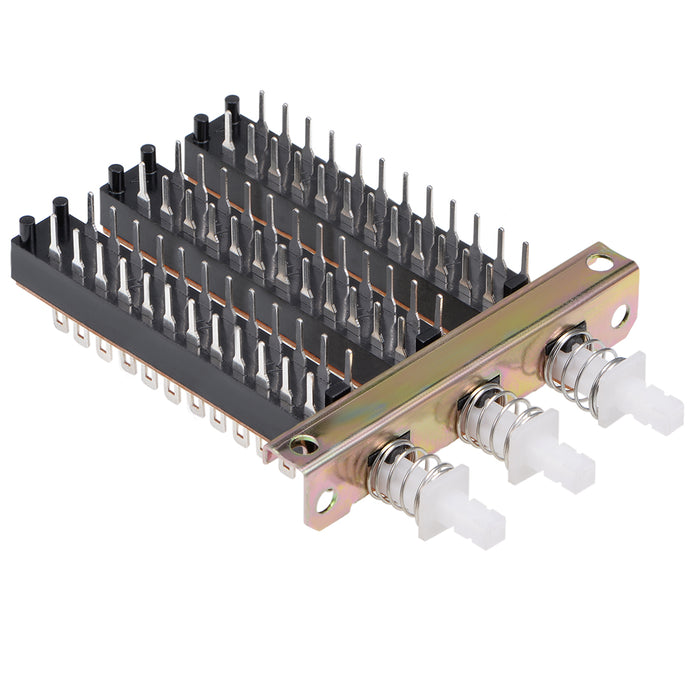

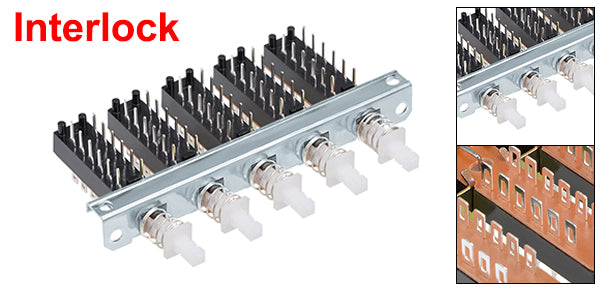

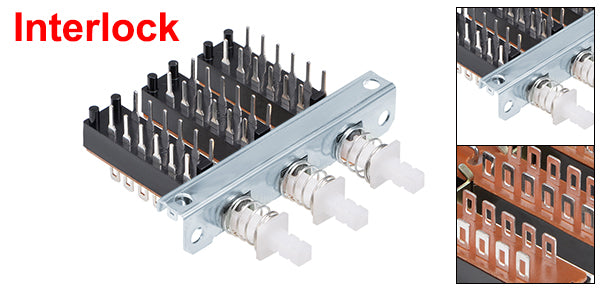

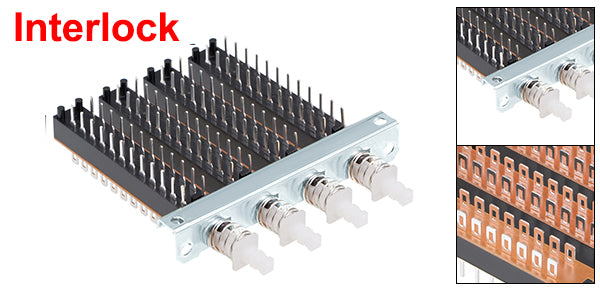

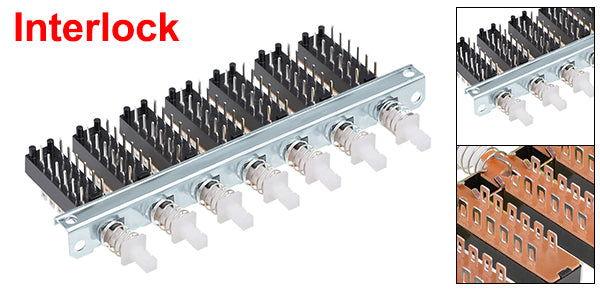

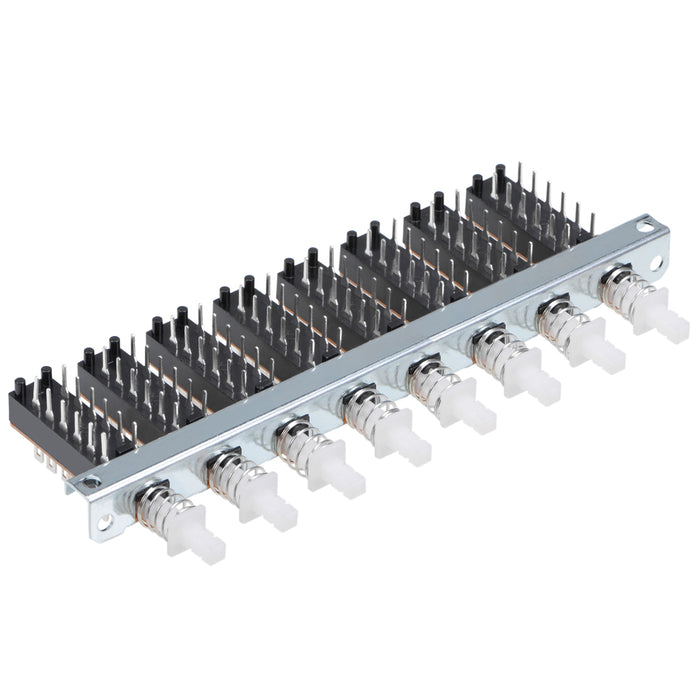

Interlocking Piano Buttons

Now available from PMD Way are these interlocking piano-style buttons. Ideal for repairs of existing equipment or adding physical switching to new projects and user-interfaces.

Use the options menu to select the model you need - rows are the number of physical buttons and all are a number of poles with double-throw switching.

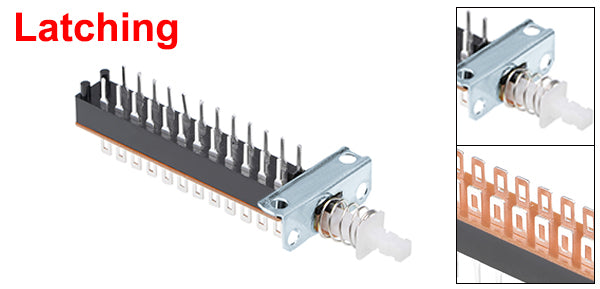

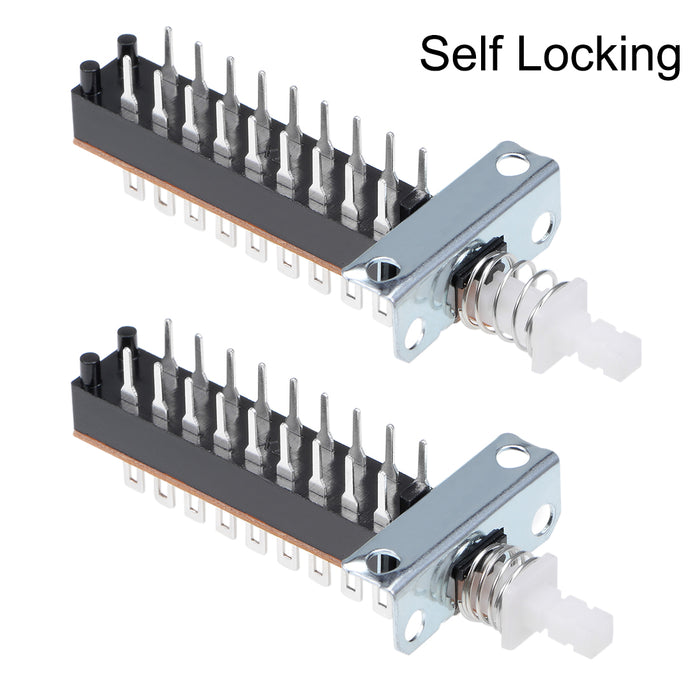

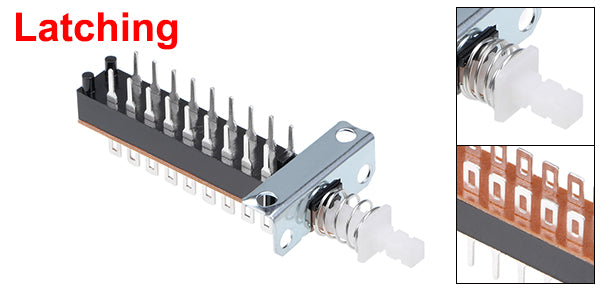

Options with one button are on-off for all the connections to it.

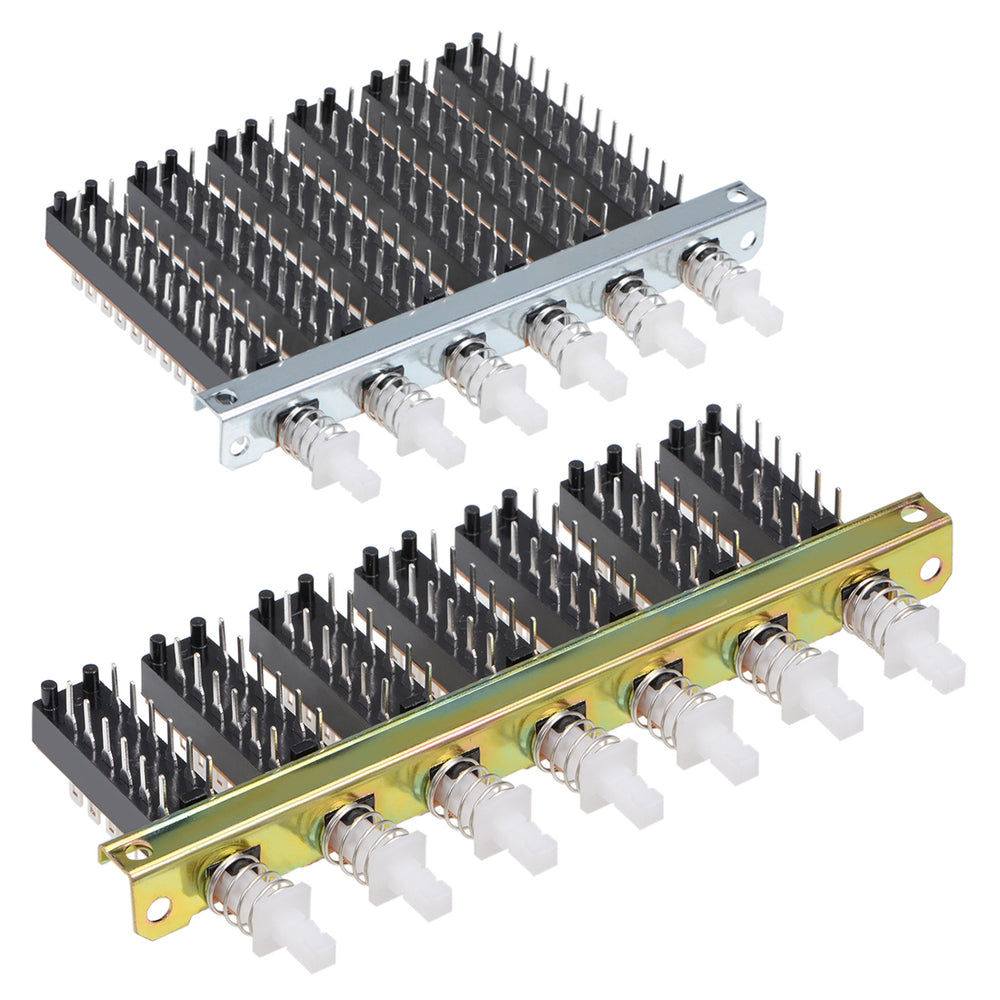

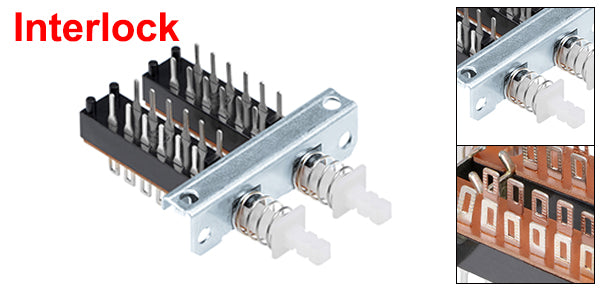

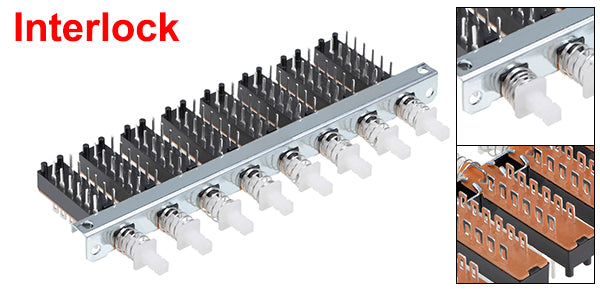

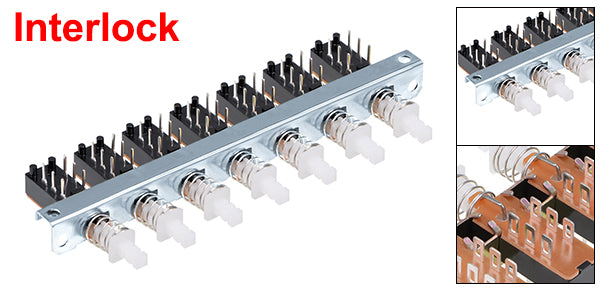

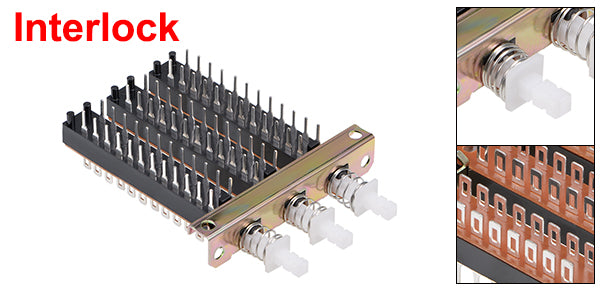

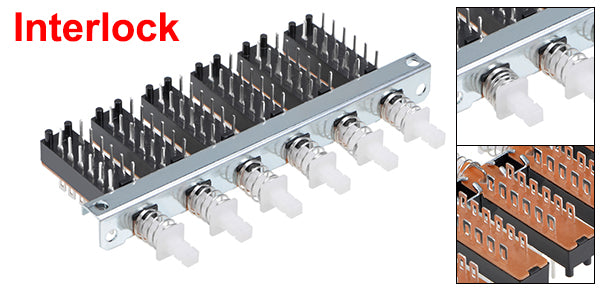

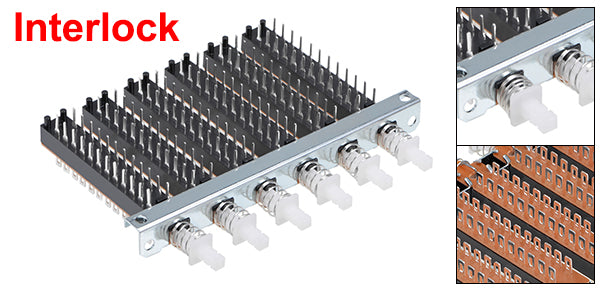

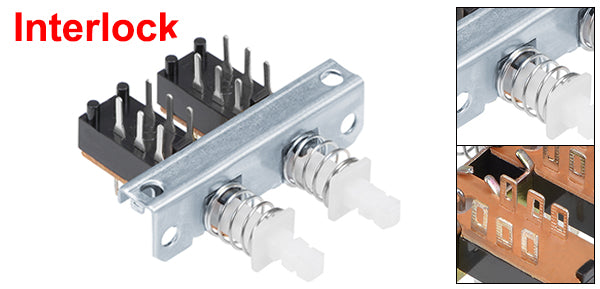

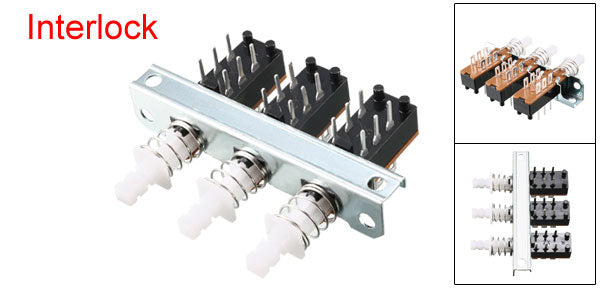

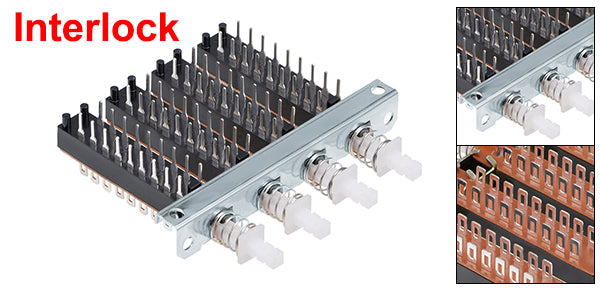

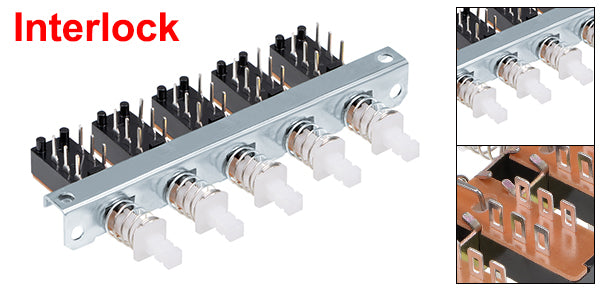

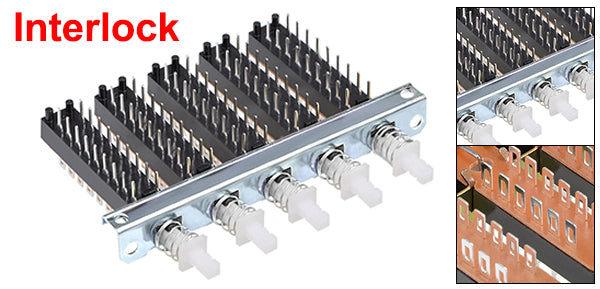

Options with more than one button allow for only one button to be on at one time - when you press another button, the previous one is turned off.

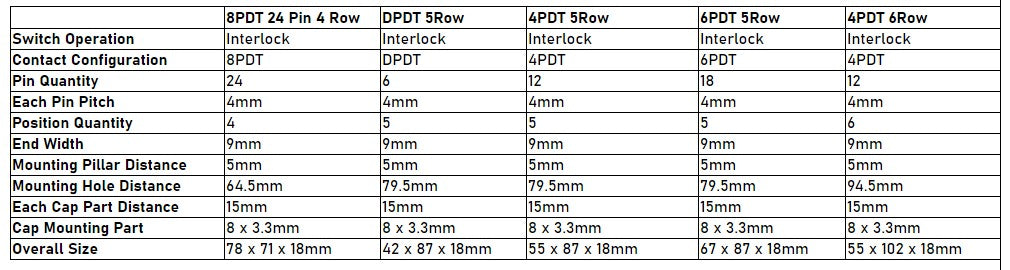

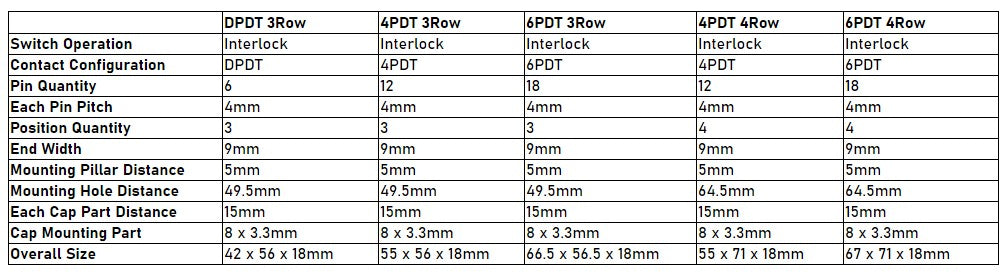

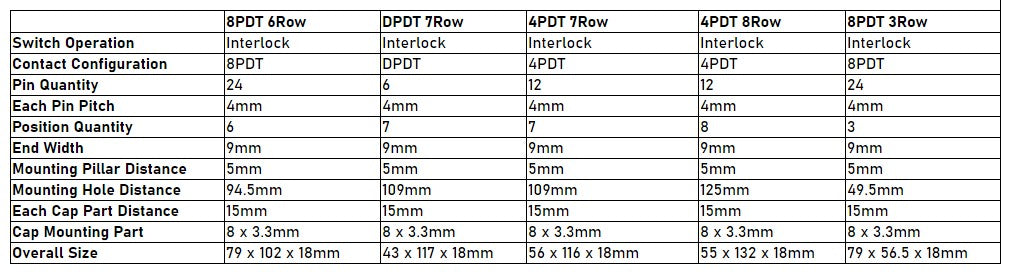

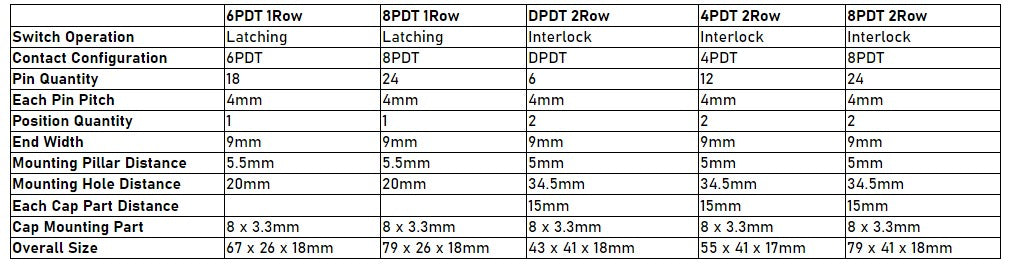

Data (click to enlarge):

Don't forget to check out our full range of buttons if this doesn't meet your needs. And as always, all orders receive free delivery.
