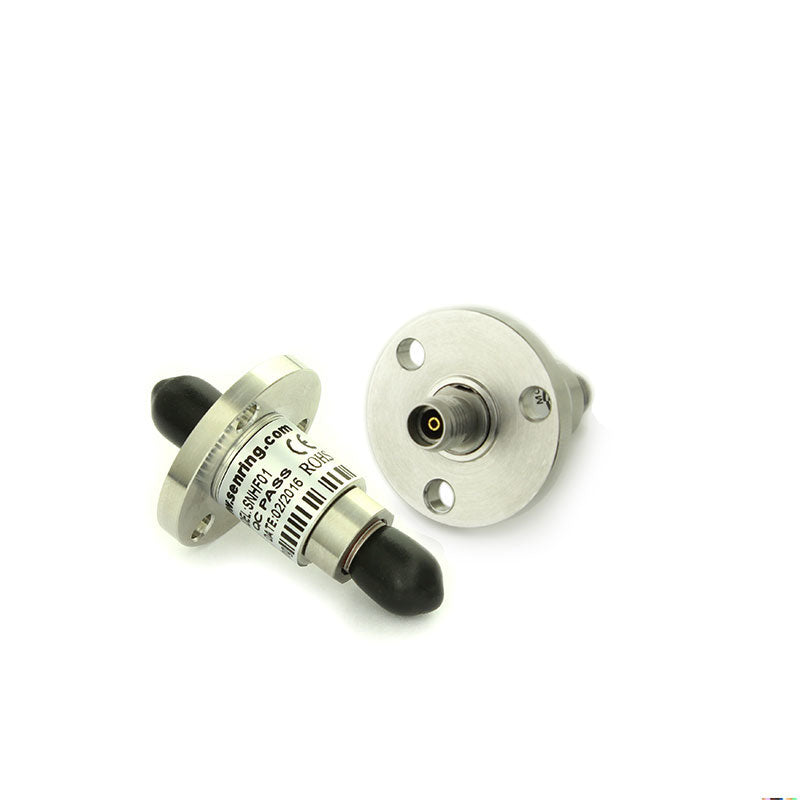

Single Channel RF High Frequency Coaxial Rotary Slip Ring

Now available from PMD Way is this single channel RF HF coaxial rotary slip ring, with free delivery. Ideal for use where you need to get an RF signal through to a rotating device.

Manufactured with a strong aluminium alloy, it can handle up to 500 W of power at 1 GHz, through to 30 W at 18 GHz, and has a maximum rotational speed of 250 RPM. Will affect VSWR by +/- 0.05.

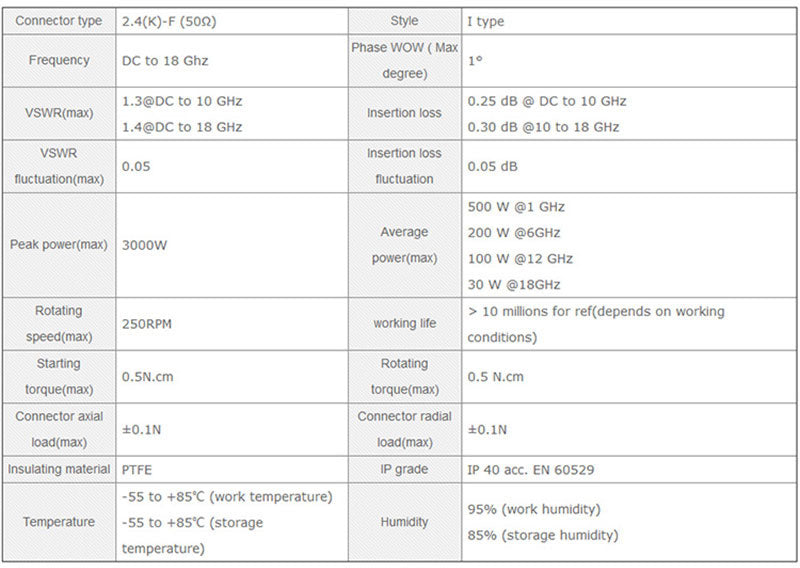

Data (click to enlarge):

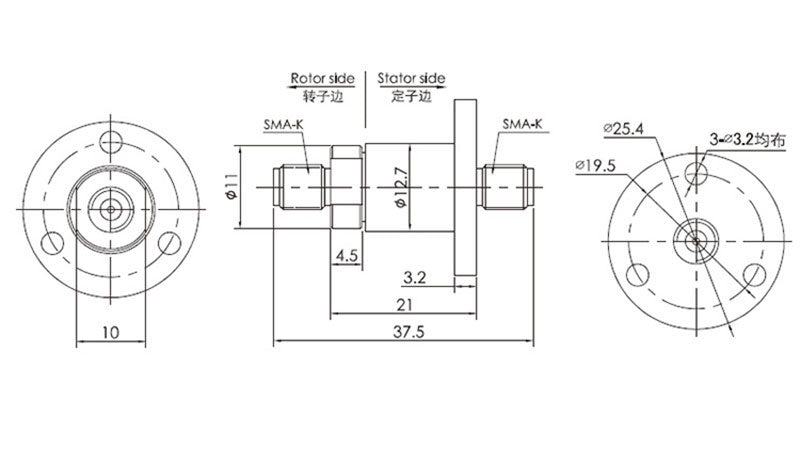

Drawing (click to enlarge):

Don't forget to check out our full range of slip rings if this doesn't meet your needs. And as always, all orders receive free delivery.
