STM32F411 "BlackPill" Development Board

Now available from PMD Way is this great value STM32F411 "BlackPill" Development Board. This powerful yet inexpensive board can be used with microPython, CircuitPython, Arduino and more - see links below.

Based on the STM32F411CEU6, which has the following specifications:

• 512 KB of flash
• 128 KB of SRAM
• CPU speed of 100 MHz

You can solder your own SOIC flash memory on to the pads on the PCB, such as a 2MB SPI unit.

Board features:

• USB C connector
• 3.3V 100mA LDO regulator
• 25MHz and 32.768kHz crystals
• Two buttons
• Boot button for entering DFU bootloader
• Power LED and a separate user LED connected to PC13

Header pins are included but not soldered to the board.

Free delivery, worldwide.

More information:

• Board schematic
• STM32 Datasheet
• STM32Duino Support
• Use with MicroPython
• Use with CircuitPython

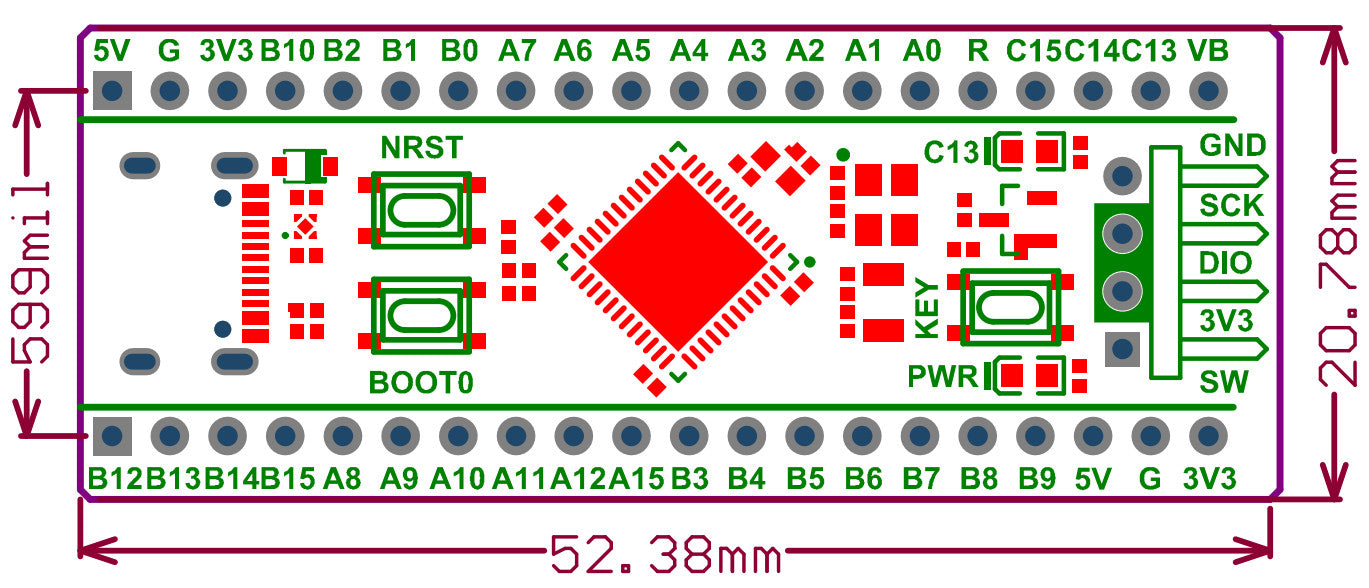

Dimensions:

Pinouts:
