Get Building with Rectangle HAM Radio Manhattan-style PCB Pads

Have a radio circuit ready to build? Our Rectangle HAM Radio Manhattan-style PCB Pads make it easier to turn your circuit idea into a soldered prototype, with convenient rectangular pads for your next session at the workbench.

Designed for Manhattan-style construction, these pads offer a practical way to create connection points for radio and associated RF projects.

Small pads, plenty of possibilities

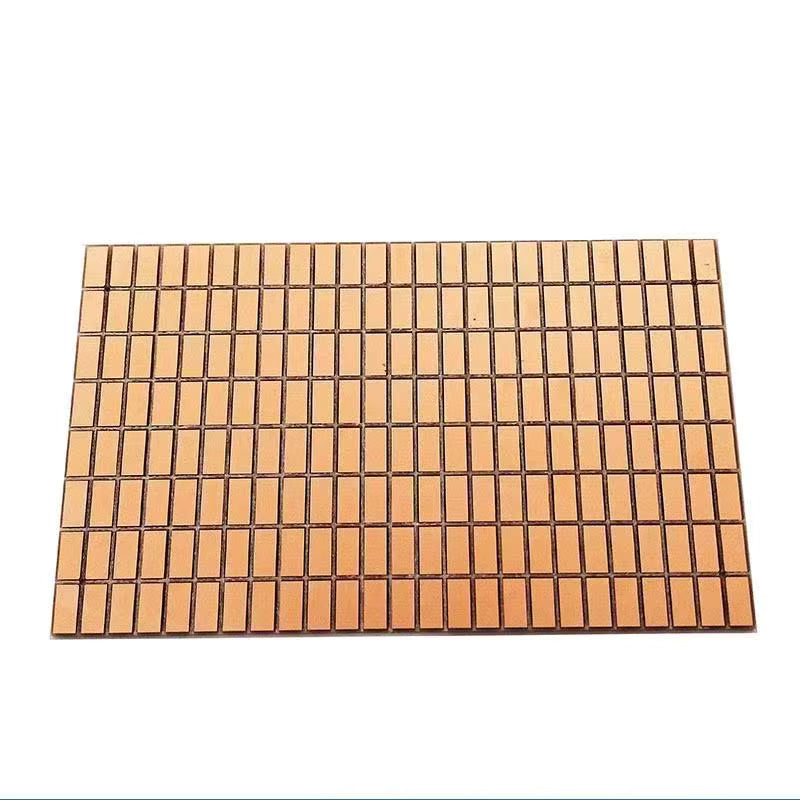

Each pad measures 5 × 10mm and is 1mm thick, giving you a rectangular soldering surface for component leads and wire connections.

The pads are double-sided and supplied in sheets. Snap off rows as you need them, or solder directly to the pads on the sheet—choose the approach that suits your layout.

Each pack includes:

• 10 sheets of 200 pads

• 2,000 rectangular pads in total

• Double-sided construction

• 5 × 10mm pads, 1mm thick

That gives you plenty of pads for experimenting with layouts and keeping supplies on hand for future builds.

A useful addition to the radio workbench

Manhattan-style construction uses small PCB islands as connection points, typically arranged on a larger copper-clad base. It gives you flexibility to position components around your circuit layout as you build.

These ready-made rectangular pads save you the job of cutting every connection island from larger pieces of board. Whether you’re trying a new circuit idea or working through a series of radio experiments, they’re a handy addition to your prototyping supplies.

Choose the shape that suits your project

Prefer smaller square connection points? We also stock square Manhattan-style PCB pads. You can explore our full prototyping PCB range for more options for your next build.

Ready to get soldering? Order your Rectangle HAM Radio Manhattan-style PCB Pads from PMD Way, with free delivery on all orders.
