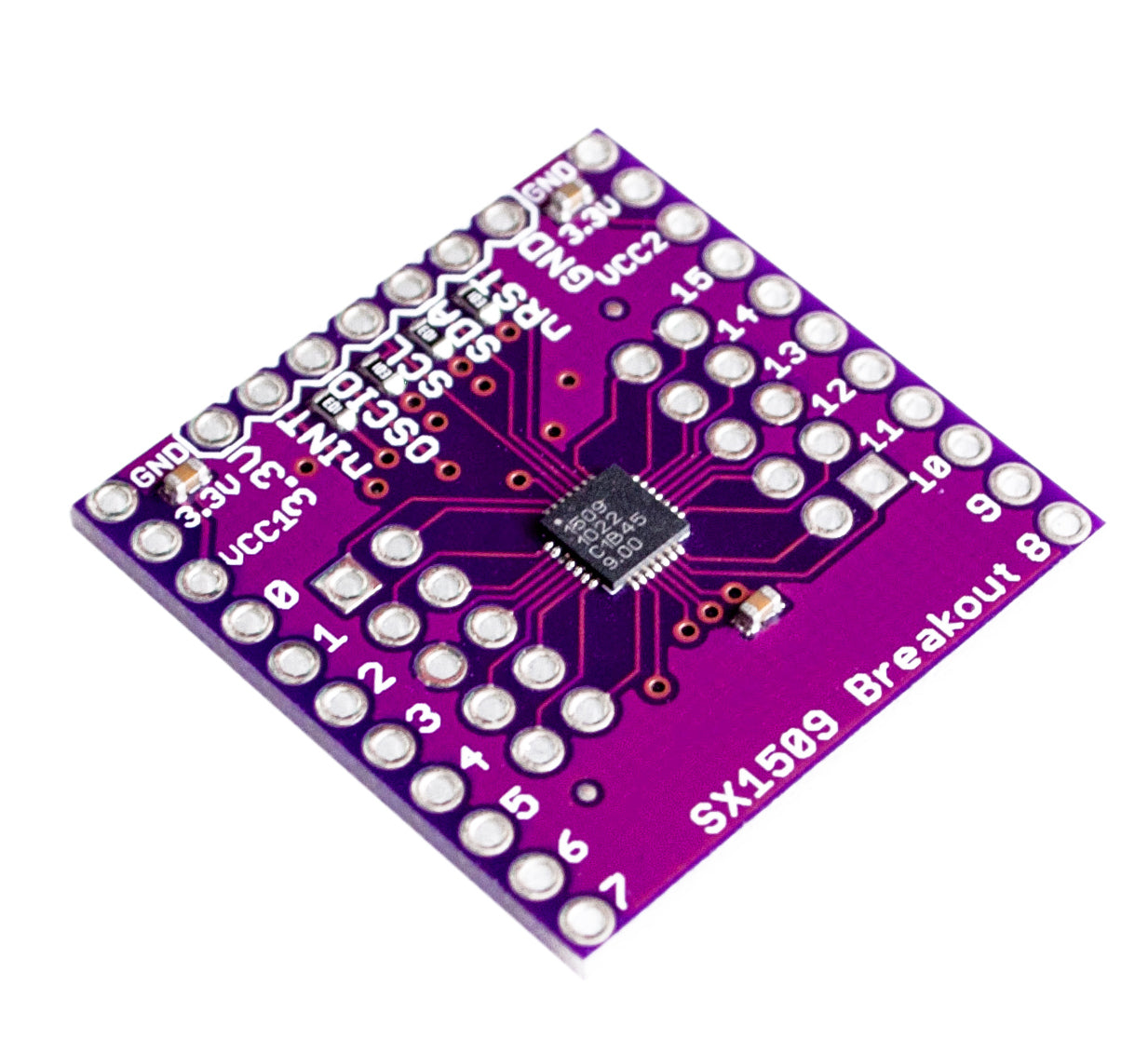

New Product - SX1509 16 Output I/O Expander Breakout
Are you looking to expand the input/output capabilities of your microcontroller or single-board computer? Look no further than the SX1509 16-Output I/O Expander Breakout available at PMD Way. This versatile breakout board is designed to provide additional digital I/O pins, making it easier to interface with a variety of sensors, LEDs, and other electronic components.
What is the SX1509 I/O Expander Breakout?
The SX1509 is a powerful I/O expander that offers 16 flexible I/O pins, each of which can be configured as an input or output. This breakout board is based on the SX1509 I2C I/O expander from Semtech, which provides advanced features such as LED dimming, keypads scanning, and GPIO expansion. With the SX1509 breakout, you can easily add more I/O pins to your project without the need for complex wiring or soldering.
Key Features of the SX1509 Breakout
Here are some key features of the SX1509 16-Output I/O Expander Breakout:
- 16 flexible I/O pins
- Configurable as input or output
- LED dimming control
- Keypad scanning functionality
- I2C interface for easy communication
- Compact and easy to use breakout board
How to Use the SX1509 Breakout
Using the SX1509 breakout board is simple and straightforward. Just connect the breakout to your microcontroller or single-board computer using the I2C interface, and you're ready to start expanding your I/O capabilities. The breakout board is compatible with popular platforms like Arduino, Raspberry Pi, and ESP8266, making it easy to integrate into your existing projects.
Applications of the SX1509 Breakout
The SX1509 16-Output I/O Expander Breakout is ideal for a wide range of applications, including:
- LED matrix control
- Keypad interfacing
- Sensor data acquisition
- GPIO expansion for microcontrollers
- Industrial automation projects
Whether you're a hobbyist, maker, or professional engineer, the SX1509 breakout board offers a convenient and cost-effective solution for expanding your I/O capabilities. Visit PMD Way today to learn more about the SX1509 16-Output I/O Expander Breakout and take your projects to the next level!
