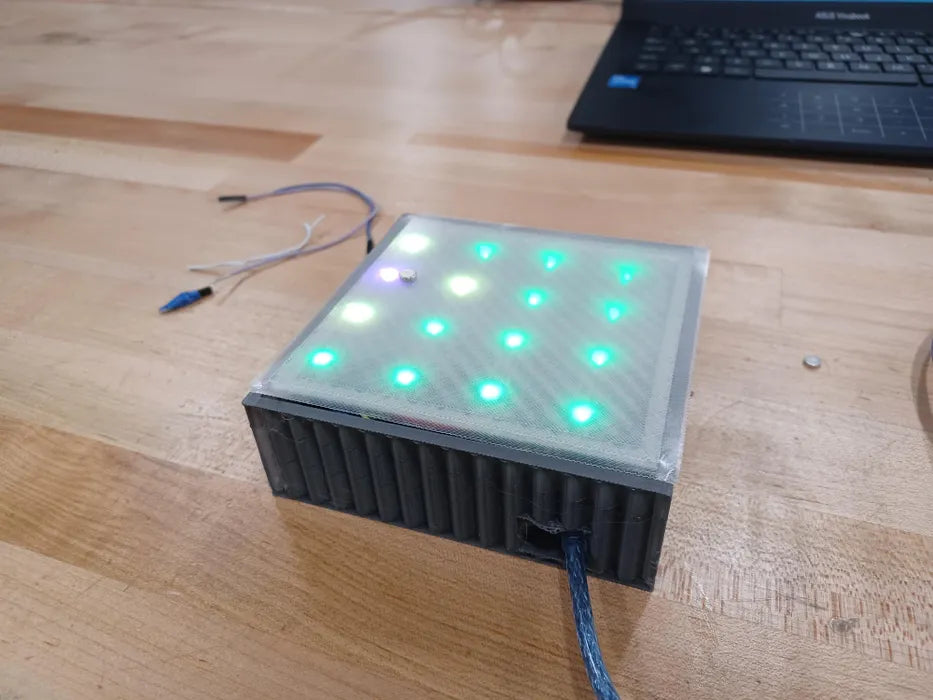

Build a Magnetic Sensor Grid

Magnetic sensor grids are an exciting DIY project that opens up a world of possibilities for makers and electronics enthusiasts. Whether you're interested in proximity detection, object tracking, or creating interactive installations, building your own magnetic sensor grid is a rewarding way to explore sensor technology.

A magnetic sensor grid works by arranging multiple magnetic sensors in a pattern to detect the presence and movement of magnetic objects across a defined area. This type of setup has practical applications in robotics, security systems, game controllers, and creative art projects. The beauty of a DIY approach is that you can customise the grid size, sensor spacing, and sensitivity to suit your specific needs.

Getting Started with Your Project

The foundation of any magnetic sensor grid is choosing the right components. Hall effect sensors are a popular choice for detecting magnetic fields, as they're affordable, reliable, and easy to integrate with microcontrollers like Arduino or Raspberry Pi. You'll also need a power supply, wiring, and a mounting structure to hold your sensors in place.

Planning your grid layout is crucial before you begin assembly. Consider how many sensors you need, what spacing works best for your application, and how you'll arrange them—whether in rows, columns, or a custom pattern. Sketch out your design and calculate the distances between sensors to ensure optimal coverage.

Assembly and Configuration

Once you have your components ready, the assembly process involves carefully mounting each sensor and connecting them to your control board. Proper wiring is essential to avoid interference and ensure accurate readings. Take time to test each sensor individually before integrating them into the full grid.

Programming your grid is where the real magic happens. You'll write code to read sensor inputs, process the data, and trigger actions based on magnetic field detection. This might involve setting sensitivity thresholds, filtering noise, or creating algorithms to track object movement across the grid.

Bringing Your Project to Life

With your magnetic sensor grid built and calibrated, the possibilities are endless. Use it to create interactive displays, build a smart security system, develop a unique game interface, or experiment with robotics applications. The skills you develop through this project will serve you well in future electronics and sensor-based endeavours.

Building a magnetic sensor grid is a fantastic way to deepen your understanding of sensor technology while creating something practical and fun. Start small, test thoroughly, and don't hesitate to iterate on your design as you learn what works best for your specific application.
